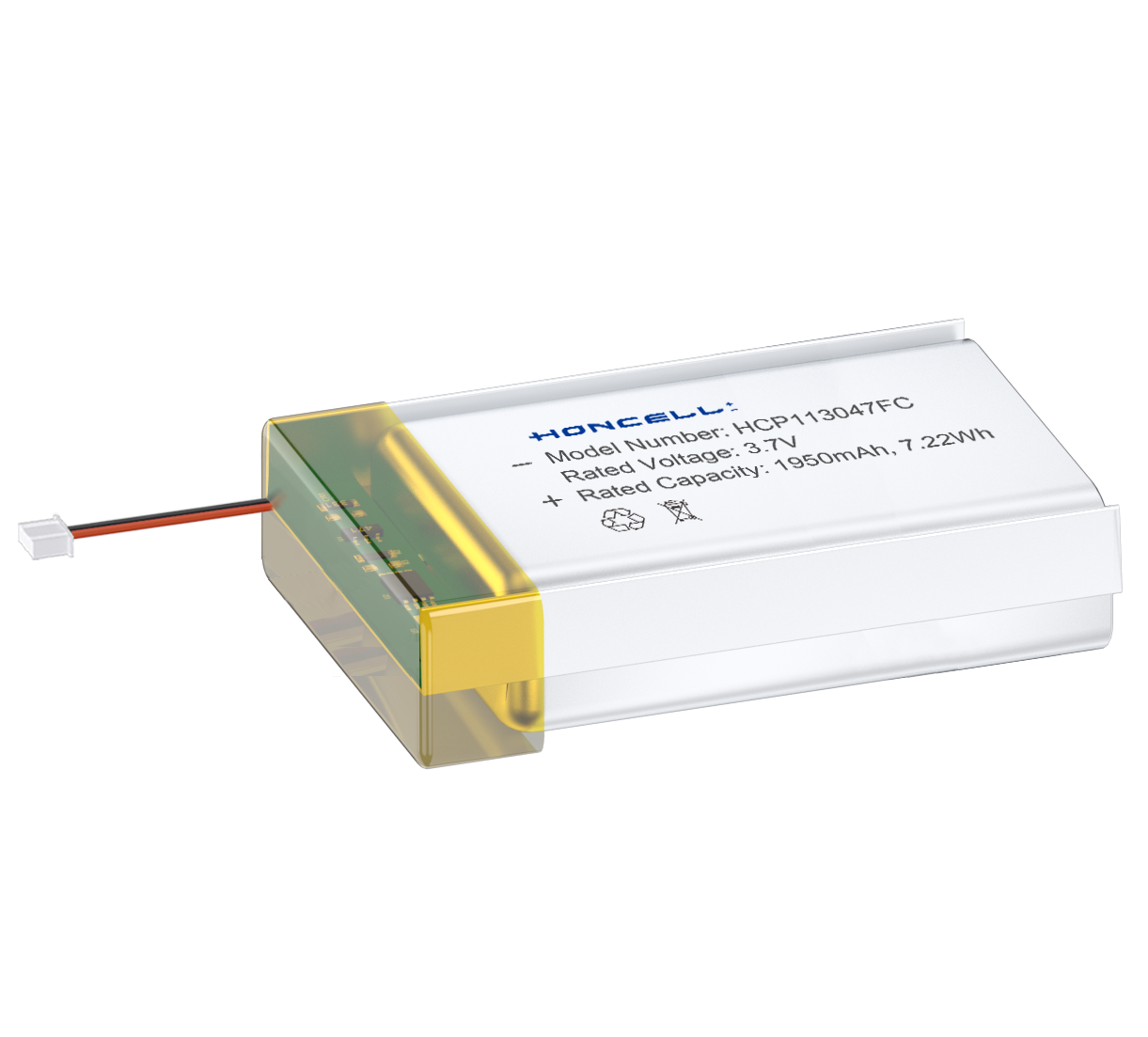

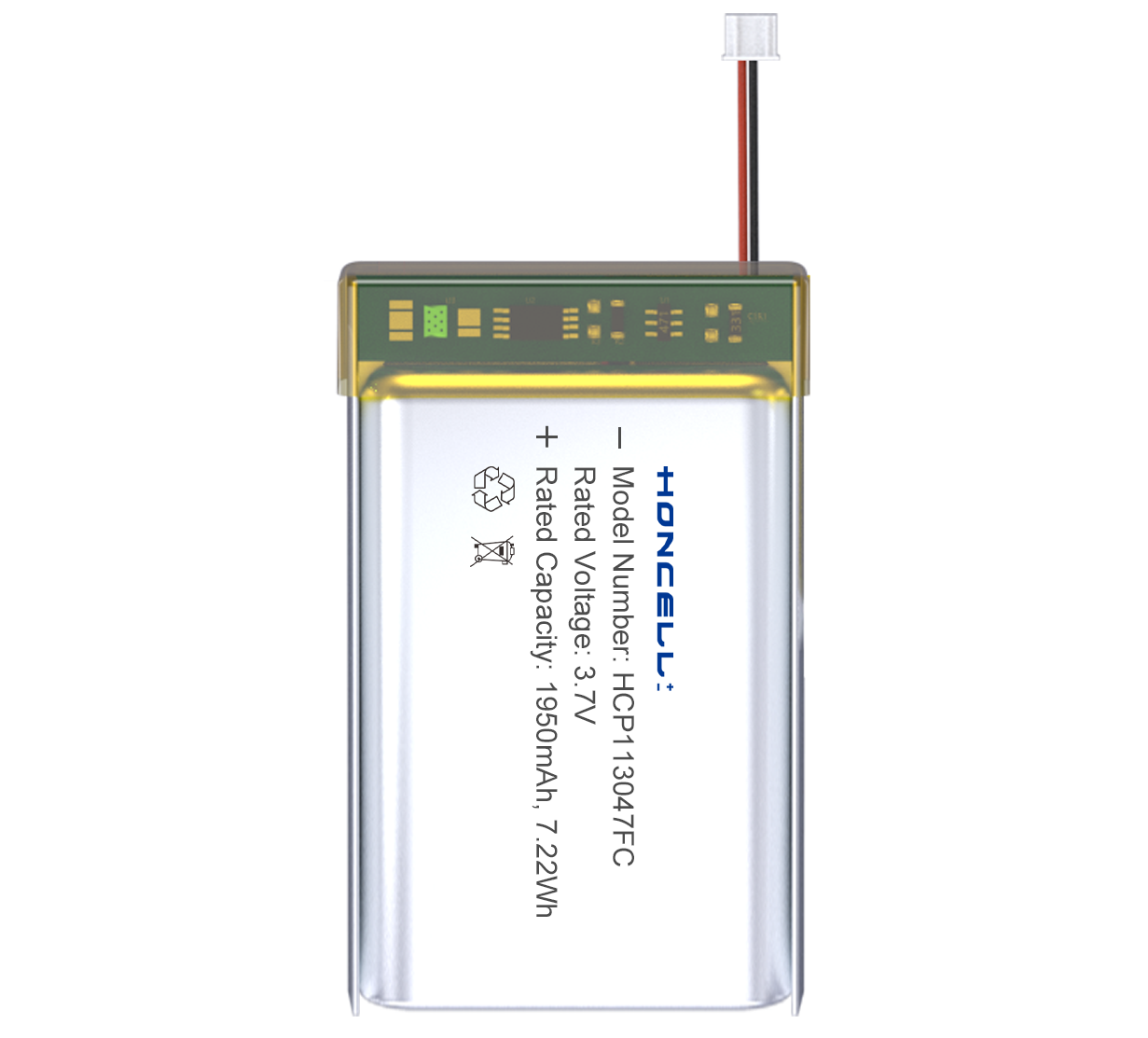

HCP Li Polymer Battery Packs HCP113047FC
Balance power and efficiency for a wide array of devices. These battery cater to handheld electronics, smart home devices, 3C products and other wireless tools.
-
Parameters
-
Common Applications
-
Other Products
-
Handling Precautions & Guidelines
Parameters
-
Norminal Capacity: 1950mAh
-
Rated Voltage: 3.7V
-
Weight: Appr. 33.5g
-
Dimensions (mm): 11.2(T)*30.0(W)*50.5(L)
-
Impedance: Max.: 180mΩ
-
Standard Charge/Discharge: 0.2C
-
Max Charge/Discharge: 1.03C/1C
-
Peak Discharge: 1.28C
-
Charge Temp.: 0-45℃ (32-113℉)
-
Discharge Temp.: -20-60℃ (-4-140℉)
HCP Li Polymer Battery Packs Applications
Other HCP Li Polymer Battery Packs
Model No. | Voltage [V] | Capacity [mAh] | Thickness [mm] | Width [mm] | Length [mm] | Impedance [≤mΩ] | Weight [g] |
---|---|---|---|---|---|---|---|
3.7 | 45 | 3.8 | 11.5 | 22.5 | 700 | 3.2 | |
3.7 | 50 | 3.0 | 20.5 | 27.5 | 700 | 3.5 | |
3.7 | 53 | 5.2 | 11.0 | 16.0 | 780 | 3.8 | |
3.7 | 60 | 5.0 | 12.5 | 20.5 | 700 | 3.5 | |
3.7 | 60 | 5.0 | 12.5 | 20.5 | 680 | 2.9 | |
3.7 | 65 | 3.0 | 15.5 | 22.5 | 660 | 3.0 | |
3.7 | 70 | 4.6 | 12.6 | 22.5 | 620 | 3.5 | |
3.7 | 70 | 5.0 | 10.5 | 23.5 | 700 | 4.5 | |
3.7 | 80 | 5.0 | 12.0 | 22.5 | 560 | 3.3 | |
3.7 | 85 | 5.0 | 12.5 | 25.0 | 570 | 4.0 | |
3.7 | 90 | 3.0 | 11.5 | 37.0 | 420 | 3.5 | |
3.7 | 90 | 3.8 | 19.7 | 22.5 | 420 | 3.5 | |
3.7 | 98 | 3.1 | 20.0 | 24.0 | 400 | 5.0 | |
3.7 | 100 | 3.0 | 22.5 | 24.5 | 440 | 4.5 | |
3.7 | 105 | 4.0 | 11.5 | 32.5 | 420 | 5.5 | |
3.7 | 105 | 4.2 | 16.5 | 26.5 | 400 | 3.5 | |
3.7 | 120 | 4.0 | 12.0 | 31.0 | 420 | 4.5 | |
3.7 | 120 | 4.0 | 12.0 | 31.0 | 420 | 4.5 | |
3.7 | 120 | 4.8 | 16.5 | 26.5 | 300 | 4.5 | |
3.7 | 120 | 4.8 | 16.5 | 26.5 | 320 | 4.5 | |
3.7 | 120 | 4.3 | 20.0 | 22.0 | 410 | 5.2 | |
3.7 | 140 | 4.0 | 20.5 | 27.0 | 320 | 6.0 | |
3.7 | 145 | 5.0 | 12.5 | 34.5 | 320 | 5.5 | |
3.7 | 150 | 4.6 | 15.0 | 28.0 | 320 | 6.0 | |
3.7 | 150 | 6.2 | 19.5 | 21.5 | 270 | 6.5 | |
3.7 | 165 | 3.0 | 23.5 | 34.0 | 420 | 5.5 | |
3.7 | 170 | 4.25 | 15.5 | 31.0 | 320 | 6.0 | |
3.7 | 180 | 4.0 | 19.5 | 28.5 | 320 | 6.5 | |
3.7 | 180 | 4.0 | 20.5 | 32.5 | 250 | 6.5 | |
3.7 | 200 | 3.1 | 27.0 | 32.0 | 350 | 6.0 | |
3.7 | 200 | 5.4 | 13.0 | 40.5 | 360 | 7.0 | |
3.7 | 200 | 5.0 | 20.5 | 27.0 | 320 | 7.0 | |
3.7 | 220 | 5.5 | 17.0 | 28.0 | 290 | 7.0 | |
3.7 | 220 | 5.0 | 20.7 | 30.0 | 290 | 7.0 | |
3.7 | 230 | 5.0 | 17.5 | 32.5 | 320 | 7.0 | |
3.7 | 240 | 6.2 | 20.5 | 27.5 | 320 | 7.0 | |
3.7 | 250 | 3.2 | 28.5 | 46.5 | 250 | 7.5 | |
3.7 | 250 | 4.0 | 28.5 | 29.5 | 300 | 8.5 | |
3.7 | 250 | 5.5 | 17.5 | 32.5 | 250 | 7.8 | |
3.7 | 250 | 5.5 | 20.5 | 29.5 | 220 | 8.0 | |
3.7 | 250 | 5.0 | 20.5 | 32.5 | 220 | 8.0 | |
3.7 | 250 | 5.0 | 20.5 | 32.5 | 240 | 8.0 | |
3.7 | 270 | 3.8 | 27.5 | 32.5 | 250 | 7.5 | |
3.7 | 270 | 10.2 | 17.5 | 24.0 | 320 | 7.5 | |
3.7 | 275 | 5.5 | 20.5 | 32.5 | 280 | 8.5 | |
3.7 | 280 | 8.0 | 15.5 | 30.5 | 320 | 8.5 | |
3.8 | 290 | 5.2 | 18.5 | 31.0 | 320 | 8.0 | |
3.7 | 300 | 4.5 | 17.0 | 49.0 | 320 | 8.5 | |
3.7 | 300 | 5.5 | 20.5 | 30.0 | 300 | 9.0 | |
3.7 | 310 | 3.2 | 29.5 | 40.5 | 250 | 8.5 | |
3.8 | 330 | 2.4 | 35.5 | 47.0 | 320 | 9.0 | |
3.7 | 330 | 5.5 | 21.5 | 35.5 | 220 | 9.5 | |
3.7 | 330 | 7.0 | 25.5 | 27.5 | 320 | 12.0 | |
3.8 | 350 | 4.5 | 21.0 | 37.0 | 240 | 9.5 | |
3.7 | 350 | 9.0 | 17.0 | 28.0 | 200 | 10.5 | |
3.7 | 360 | 3.2 | 25.5 | 47.5 | 240 | 9.5 | |
3.7 | 370 | 7.4 | 22.0 | 26.0 | 250 | 9.6 | |
3.7 | 380 | 6.5 | 24.5 | 29.5 | 250 | 9.5 | |
3.7 | 400 | 4.0 | 30.5 | 35.5 | 270 | 10.5 | |
3.7 | 400 | 6.0 | 24.5 | 30.0 | 220 | 10.0 | |
3.7 | 400 | 7.0 | 21.5 | 29.5 | 250 | 10.0 | |
3.7 | 400 | 8.0 | 18.0 | 33.0 | 250 | 10.5 | |
3.7 | 400 | 9.2 | 21.5 | 28.0 | 220 | 10.0 | |
3.7 | 420 | 4.0 | 30.5 | 42.5 | 200 | 11 | |
3.7 | 420 | 5.0 | 27.5 | 36.5 | 220 | 11.5 | |
3.7 | 420 | 6.0 | 20.5 | 42.0 | 250 | 11.0 | |
3.7 | 445 | 4.0 | 24.5 | 49.5 | 250 | 11.5 | |
3.7 | 450 | 3.0 | 20.5 | 86.5 | 220 | 12.0 | |
3.7 | 450 | 6.5 | 21.5 | 36.5 | 240 | 7.5 | |
3.7 | 470 | 8.0 | 17.5 | 42.5 | 240 | 12.5 | |
3.7 | 480 | 5.4 | 23.5 | 39.5 | 230 | 12.0 | |
3.7 | 500 | 3.5 | 30.5 | 50.5 | 200 | 13.5 | |
3.7 | 500 | 4.0 | 25.0 | 50.0 | 220 | 12.0 | |
3.7 | 500 | 4.4 | 30.5 | 40.0 | 220 | 12.5 | |
3.7 | 500 | 6.5 | 25.5 | 35.5 | 200 | 12.5 | |
3.7 | 500 | 6.0 | 25.5 | 36.5 | 220 | 12.5 | |
3.7 | 500 | 6.0 | 25.5 | 37.0 | 240 | 12.5 | |
3.7 | 500 | 6.0 | 25.5 | 37.0 | 210 | 12.5 | |
3.7 | 500 | 7.4 | 25.5 | 29.5 | 250 | 12.5 | |
3.7 | 500 | 7.0 | 25.5 | 32.5 | 220 | 12.0 | |
3.7 | 520 | 6.0 | 30.5 | 32.5 | 180 | 13.5 | |
3.7 | 530 | 7.5 | 20.5 | 35.0 | 220 | 12.6 | |
3.7 | 550 | 7.0 | 23.5 | 37.5 | 240 | 12.5 | |
3.7 | 550 | 10.0 | 20.0 | 30.0 | 220 | 14.0 | |
3.7 | 560 | 5.0 | 22.5 | 49.5 | 180 | 13.0 | |
3.7 | 580 | 4.5 | 24.5 | 50.5 | 200 | 14.0 | |
3.7 | 580 | 4.5 | 25.0 | 50.0 | 250 | 14.0 | |
3.7 | 580 | 5.0 | 27.5 | 44.5 | 180 | 14.0 | |
3.7 | 600 | 4.5 | 25.0 | 50.0 | 220 | 14.5 | |
3.7 | 600 | 5.6 | 22.5 | 50.5 | 220 | 14.0 | |
3.7 | 600 | 5.3 | 30.5 | 42.5 | 240 | 14.5 | |
3.7 | 600 | 5.0 | 30.5 | 42.5 | 270 | 13.0 | |
3.7 | 630 | 6.0 | 16.5 | 67.5 | 220 | 15.5 | |
3.7 | 650 | 3.0 | 40.5 | 56.0 | 220 | 15.0 | |
3.7 | 650 | 7.0 | 30.5 | 32.5 | 190 | 15.0 | |
3.7 | 700 | 7.8 | 25.5 | 38.5 | 180 | 16.5 | |
3.7 | 700 | 8.2 | 30.5 | 32.5 | 220 | 17.5 | |
3.7 | 735 | 5.0 | 32.5 | 42.5 | 180 | 15.5 | |
3.8 | 750 | 4.55 | 34.5 | 40.5 | 200 | 14.0 | |
3.7 | 770 | 4.1 | 21.5 | 63.5 | 250 | 13.5 | |
3.7 | 770 | 8.0 | 30.5 | 32.5 | 320 | 17.5 | |
3.7 | 800 | 2.5 | 54.5 | 78.5 | 180 | 20.0 | |
3.7 | 800 | 3.1 | 54.7 | 73.5 | 220 | 21.0 | |
3.7 | 800 | 6.8 | 29.5 | 42.0 | 220 | 18.0 | |
3.7 | 800 | 9.0 | 20.5 | 44.5 | 230 | 18.5 | |
3.7 | 850 | 7.7 | 20.5 | 52.5 | 180 | 18.5 | |
3.7 | 900 | 4.0 | 30.0 | 60.5 | 180 | 19.0 | |
3.7 | 900 | 9.0 | 22.5 | 50.5 | 180 | 20.5 | |
3.7 | 950 | 6.0 | 18.5 | 75.5 | 230 | 18.5 | |
3.7 | 950 | 8.0 | 30.5 | 42.8 | 250 | 23.0 | |
3.7 | 950 | 8.0 | 30.5 | 43.0 | 180 | 21.5 | |
3.7 | 1000 | 5.9 | 32.0 | 48.5 | 180 | 22.0 | |
3.7 | 1000 | 5.4 | 34.5 | 52.5 | 180 | 21.0 | |
3.7 | 1000 | 5.3 | 47.5 | 42.5 | 180 | 23.0 | |
3.7 | 1000 | 6.3 | 32.0 | 49.5 | 180 | 21.0 | |
3.7 | 1000 | 6.0 | 34.5 | 46.0 | 180 | 19.5 | |
3.7 | 1000 | 7.3 | 35.5 | 37.0 | 200 | 21.0 | |
3.7 | 1050 | 5.0 | 34.5 | 50.5 | 180 | 24.0 | |
3.7 | 1050 | 5.4 | 34.5 | 52.5 | 180 | 22.0 | |
3.7 | 1050 | 5.0 | 40.5 | 48.5 | 180 | 21.5 | |
3.8 | 1100 | 5.3 | 35.0 | 52.5 | 180 | 20.5 | |
3.7 | 1100 | 6.0 | 38.5 | 41.0 | 180 | 19.5 | |
3.7 | 1100 | 7.0 | 34.5 | 45.0 | 180 | 23.0 | |
3.7 | 1150 | 7.0 | 34.5 | 42.0 | 200 | 20.5 | |
3.7 | 1150 | 7.0 | 34.5 | 42.5 | 180 | 22.5 | |
11.1 | 1150 | 12.7 | 36.5 | 71.5 | 280 | 59.0 | |
3.7 | 1180 | 5.2 | 40.0 | 52.5 | 180 | 23.0 | |
3.7 | 1200 | 6.5 | 32.5 | 50.5 | 180 | 24.0 | |
3.7 | 1200 | 6.7 | 33.5 | 48.5 | 180 | 23.5 | |
3.7 | 1200 | 6.5 | 34.0 | 51.5 | 180 | 22.5 | |
3.7 | 1200 | 6.4 | 34.5 | 52.5 | 150 | 24.0 | |
3.7 | 1200 | 6.0 | 36.0 | 50.0 | 180 | 22.5 | |
3.7 | 1200 | 6.0 | 36.0 | 53.0 | 200 | 24.5 | |
3.7 | 1200 | 8.5 | 34.5 | 40.0 | 200 | 24.5 | |
3.7 | 1250 | 5.0 | 35.5 | 64.5 | 200 | 24.5 | |
3.7 | 1250 | 7.2 | 34.5 | 47.0 | 200 | 23.5 | |
3.7 | 1300 | 7.0 | 34.5 | 50.5 | 180 | 25.5 | |
3.7 | 1350 | 5.5 | 40.0 | 50.5 | 200 | 29.0 | |
3.7 | 1350 | 7.0 | 37.0 | 46.5 | 180 | 25.5 | |
3.7 | 1350 | 7.0 | 39.5 | 46.0 | 180 | 25.0 | |
11.1 | 1350 | 7.5 | 113.5 | 49.5 | 360 | 70.0 | |
3.7 | 1400 | 5.0 | 37.5 | 67.0 | 180 | 26.0 | |
3.7 | 1400 | 6.2 | 39.5 | 53.8 | 200 | 26.5 | |
3.7 | 1400 | 8.0 | 16.8 | 98.0 | 180 | 26.5 | |
7.4 | 1400 | 9.5 | 45.5 | 67.0 | 300 | 56.0 | |
3.7 | 1440 | 7.5 | 43.0 | 37.5 | 180 | 25.5 | |
3.7 | 1500 | 3.3 | 57.5 | 75.0 | 180 | 28.0 | |
3.7 | 1500 | 9.5 | 22.5 | 62.5 | 180 | 29.0 | |
3.7 | 1600 | 6.0 | 50.5 | 53.0 | 180 | 32.0 | |
3.7 | 1610 | 4.5 | 50.5 | 58.0 | 180 | 28.5 | |
3.7 | 1650 | 8.0 | 22.5 | 96.5 | 180 | 36.5 | |
7.4 | 1710 | 12.2 | 46.7 | 53.3 | 200 | 58.0 | |
3.7 | 1800 | 6.9 | 40.5 | 57.0 | 180 | 32.5 | |
7.4 | 1850 | 10.6 | 46.0 | 60.5 | 240 | 73.0 | |
3.7 | 1900 | 8.0 | 46.5 | 56.0 | 180 | 40.5 | |
3.7 | 1900 | 10.0 | 34.5 | 53.0 | 150 | 35.0 | |
3.7 | 1900 | 10.0 | 34.5 | 53.0 | 150 | 35.0 | |
3.7 | 1900 | 10.0 | 34.5 | 58.0 | 150 | 35.0 | |
3.7 | 1950 | 11.2 | 30.0 | 50.5 | 180 | 33.5 | |
3.7 | 2000 | 5.6 | 42.5 | 75.0 | 180 | 34.0 | |
3.7 | 2000 | 5.3 | 45.5 | 66.5 | 180 | 32.0 | |
3.7 | 2000 | 5.3 | 45.5 | 66.5 | 180 | 32.5 | |
3.7 | 2000 | 5.5 | 48.5 | 62.5 | 180 | 33.5 | |
3.7 | 2000 | 9.0 | 35.5 | 65.0 | 180 | 40.5 | |
3.7 | 2000 | 10.0 | 19.5 | 108.0 | 180 | 38.0 | |
3.7 | 2000 | 10.0 | 34.5 | 53.0 | 180 | 38.0 | |
3.7 | 2000 | 10.2 | 40.5 | 43.0 | 180 | 33.0 | |
3.7 | 2030 | 12.0 | 32.5 | 46.0 | 180 | 35.0 | |
3.7 | 2100 | 8.0 | 40.5 | 57.0 | 180 | 37.5 | |
3.7 | 2150 | 7.0 | 41.0 | 64.0 | 180 | 34.5 | |
3.7 | 2200 | 5.5 | 45.5 | 67.0 | 180 | 36.5 | |
3.7 | 2200 | 10.0 | 38.5 | 49.5 | 180 | 40.3 | |
3.7 | 2200 | 15.5 | 61.0 | 63.5 | 180 | 109.5 | |
3.7 | 2300 | 5.6 | 42.5 | 73.0 | 180 | 33.5 | |
7.4 | 2300 | 10.5 | 52.0 | 68.5 | 280 | 69.0 | |
3.7 | 2300 | 11.6 | 40.5 | 42.0 | 200 | 40.0 | |
3.7 | 2300 | 11.0 | 40.5 | 43.0 | 180.0 | 39.0 | |
11.1 | 2300 | 18.0 | 52.0 | 71.0 | 360 | 116.0 | |
3.7 | 2350 | 11.0 | 40.0 | 45.0 | 180 | 39.0 | |
3.7 | 2400 | 3.9 | 52.5 | 94.5 | 180 | 39.0 | |
7.4 | 2400 | 11.2 | 51.5 | 82.0 | 240 | 95.0 | |
7.4 | 2400 | 11.2 | 51.5 | 82.0 | 240 | 95.0 | |
7.4 | 2400 | 14.6 | 39.0 | 78.5 | 180 | 80.0 | |
3.7 | 2500 | 3.2 | 68.5 | 90.0 | 200 | 47.0 | |
3.7 | 2500 | 3.2 | 68.5 | 90.0 | 200 | 47.0 | |
3.7 | 2570 | 7.6 | 38.5 | 73.0 | 180 | 42.5 | |
3.7 | 2600 | 10.2 | 48.0 | 46.5 | 150 | 45.0 | |
3.7 | 2620 | 11.2 | 34.0 | 55.5 | 200 | 48.0 | |
3.7 | 2650 | 10.2 | 45.5 | 47.0 | 150 | 47.0 | |
3.7 | 2650 | 11.2 | 33.5 | 57.5 | 200 | 39.0 | |
3.7 | 2700 | 7.0 | 50.5 | 66.0 | 120 | 45.0 | |
3.7 | 2700 | 8.0 | 42.0 | 64.5 | 180 | 44.0 | |
3.7 | 2800 | 7.0 | 39.5 | 89.0 | 180 | 48.0 | |
3.7 | 2800 | 7.0 | 52.0 | 66.0 | 180 | 47.5 | |
11.4 | 2800 | 11.6 | 116.5 | 54.5 | 410 | 126.0 | |
3.7 | 3000 | 8.6 | 41.5 | 69.0 | 200 | 48.5 | |
3.7 | 3000 | 10.0 | 40.5 | 62.5 | 180 | 50.5 | |
3.7 | 3000 | 10.0 | 40.5 | 62.0 | 180 | 49.5 | |
3.7 | 3000 | 10.0 | 40.5 | 62.5 | 180 | 48.5 | |
3.7 | 3000 | 10 | 40 | 62.5 | 180 | 48.5 | |
3.7 | 3000 | 10.3 | 40.5 | 63.0 | 180 | 52.5 | |
7.4 | 3000 | 10.8 | 65.6 | 73.2 | 200 | 105.0 | |
7.4 | 3000 | 10.8 | 65.6 | 73.2 | 200 | 105 | |
3.7 | 3100 | 12.0 | 40.5 | 54.0 | 180 | 51.5 | |
3.7 | 3300 | 4.3 | 61.5 | 86.5 | 180 | 44.5 | |
11.1 | 3450 | 22.0 | 51.0 | 80.0 | 280 | 155.0 | |
3.7 | 3500 | 4.5 | 58.5 | 87.0 | 180 | 45.5 | |
3.7 | 3700 | 8.7 | 51.0 | 62.0 | 150 | 53.5 | |
3.7 | 3850 | 5.0 | 62.5 | 93.0 | 180 | 58.5 | |
3.8 | 4000 | 4.75 | 53.0 | 104.5 | 180 | 50.0 | |
3.7 | 4000 | 6.0 | 60.0 | 92.5 | 180 | 61.5 | |
3.7 | 4000 | 7.5 | 32.5 | 137.0 | 180 | 65.5 | |
3.7 | 4000 | 7.0 | 55.5 | 82.5 | 180 | 61.5 | |
3.8 | 4000 | 10.0 | 40.5 | 65.5 | 180 | 51.5 | |
3.7 | 4400 | 20.5 | 35.0 | 53.5 | 180 | 70.5 | |
3.7 | 4400 | 20.5 | 39.0 | 51.5 | 180 | 74.5 | |
3.7 | 4600 | 4.7 | 77.5 | 92.5 | 180 | 65.5 | |
3.7 | 4800 | 4.6 | 68.6 | 167.6 | 160 | 75.5 | |
3.7 | 4800 | 7.5 | 59.5 | 80.5 | 180 | 78.0 | |
3.7 | 4800 | 8.0 | 50.5 | 88.0 | 180 | 69.0 | |
3.7 | 5000 | 5.2 | 70.0 | 112.5 | 180 | 80.0 | |
3.7 | 5000 | 8.8 | 55.0 | 82.0 | 180 | 75.5 | |
3.7 | 5000 | 10.0 | 54.5 | 66.0 | 180 | 69.0 | |
3.7 | 5100 | 5.1 | 49.5 | 135.0 | 180 | 67.5 | |
3.7 | 5200 | 9.5 | 39.5 | 10.8 | 200 | 89.5 | |
3.7 | 5800 | 4.6 | 64.5 | 146.0 | 180 | 84.0 | |
3.7 | 6000 | 6.9 | 55.5 | 110.0 | 180 | 80.0 | |
3.7 | 6000 | 9.0 | 60.5 | 92.5 | 180 | 96.5 | |
3.7 | 6000 | 9.0 | 60.5 | 92.5 | 180 | 96.5 | |
3.7 | 6000 | 10.2 | 60.0 | 82.5 | 180 | 100.0 | |
3.7 | 6200 | 11.1 | 61.0 | 70.0 | 180 | 89.0 | |
7.4 | 6600 | 20.0 | 60.5 | 80.0 | 220 | 178.0 | |
7.4 | 6700 | 20.0 | 60.0 | 80.0 | 180 | 172.0 | |
3.7 | 7000 | 10.5 | 60.5 | 93.0 | 180 | 116.5 | |
11.1 | 8200 | 23.2 | 46.0 | 156.0 | 240 | 302.0 | |
3.8 | 8900 | 13.1 | 60.0 | 77.0 | 180 | 116.0 | |
11.1 | 9000 | 32.5 | 39.5 | 89.0 | 150 | 440.0 | |
7.4 | 9300 | 21.8 | 60.0 | 106.0 | 250 | 246.0 | |
3.8 | 13350 | 19.5 | 60.5 | 78.0 | 180 | 162.5 |
Handling Precautions & Guidelines
-
Can the battery be customized?
Yes, we provide tailored solutions to meet our customers' precise needs. Our customization options include size, capacity, voltage, maximum discharge rate, and other parameters. Contact us to explore how we can create a battery solution that fits your requirements perfectly.
-
Are there any special storage requirements for the battery?
Li-ion batteries should be stored in a cool, dry place, shielded from direct sunlight and heat sources. Following our storage guidelines is advisable to ensure optimal battery performance and safety.
-
What is the charging time of the battery?
Generally, Honcell's batteries can be fully charged in 0.5 to 3 hours, depending on the charging current and the capacity of the battery.
Explore the power of battery with us
