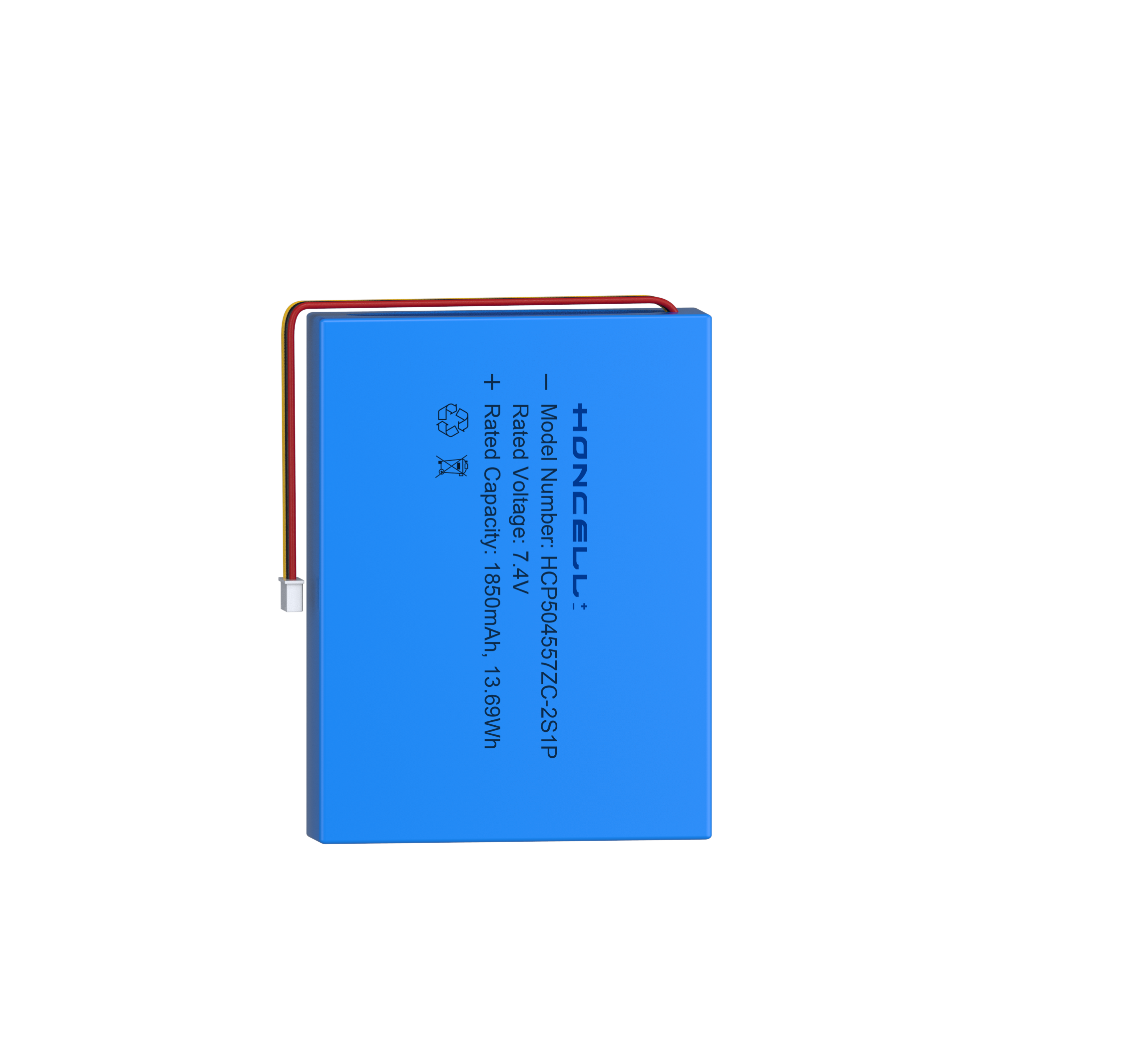

HCP Li Polymer Battery Packs HCP504557ZC-2S1P

Balance power and efficiency for a wide array of devices. These battery cater to handheld electronics, smart home devices, 3C products and other wireless tools.

  • Parameters
  • Common Applications
  • Other Products
  • Handling Precautions & Guidelines

Parameters

  • Norminal Capacity: 1850mAh
  • Rated Voltage: 7.4V
  • Weight: Appr. 55.0g
  • Dimensions (mm): 10.6 (T)*46.0 (W)*61.0 (L)
  • Impedance: Max.: 180mΩ
  • Standard Charge/Discharge: 0.2C
  • Max Charge/Discharge: 1.0C
  • Peak Discharge: 2.0C
  • Charge Temp.: 0-45℃ (32-113℉)
  • Discharge Temp.: -20-60℃ (-4-140℉)

HCP Li Polymer Battery Packs Applications

Other HCP Li Polymer Battery Packs

Model No. Voltage [V]Capacity [mAh]Thickness [mm]Width [mm]Length [mm]Impedance [≤mΩ]Weight [g]
HCP381120W
3.7
45
3.8
11.5
22.5
700
3.2
HCP202025W
3.7
50
3.0
20.5
27.0
660
5.2
HCP521114ZC
3.7
53
5.2
11.0
16.0
780
3.8
HCP501218NW
3.7
60
5.0
12.5
20.5
700
3.5
HCP501218W
3.7
60
5.0
12.5
20.5
720
5.5
HCP301520W
3.7
65
3.2
15.5
22.5
660
5.0
HCP451220W
3.7
70
4.6
12.6
22.5
600
5.6
HCP501021W
3.7
70
5.0
10.5
23.5
700
4.5
HCP501220W
3.7
80
5.0
12.0
22.5
560
5.5
HCP451223NZC
3.7
85
4.5
12.5
25.5
560
5.5
HCP301135W
3.7
90
3.0
11.5
36.5
560
6.0
HCP381920W
3.7
90
3.8
19.7
22.5
420
3.5
HCP292022NW
3.7
98
3.1
20.0
24.0
320
5.5
HCP302222W
3.7
100
3.8
22.5
23.5
320
6.6
HCP401130ZC
3.7
105
4.0
11.5
32.5
320
5.7
HCP421624W
3.7
105
4.2
16.5
26.5
400
3.5
HCP481619FC
3.7
110
4.8
16.5
21.5
450
4.5
HCP401229ZC
3.7
120
4.0
12.0
31.0
320
5.5
HCP481624FC
3.7
120
4.8
16.5
26.5
300
4.5
HCP481624W
3.7
120
4.8
16.5
26.0
320
6.5
HCP432020NZC
3.7
120
4.3
20.0
22.0
320
6.5
HCP402025ZC
3.7
140
4.0
20.5
27.0
320
6.0
HCP501232W
3.7
145
5.0
12.5
34.5
320
5.5
HCP441526ZC
3.7
150
4.6
15.0
28.0
320
6.0
HCP621919FC
3.7
150
6.7
20.0
21.5
320
7.5
HCP272332W
3.7
165
3.0
23.5
34.0
420
5.5
HCP421529W
3.7
170
4.3
15.9
31.0
320
7.0
HCP401926ZC
3.7
180
4.0
19.5
28.0
320
7.0
HCP402030ZC
3.7
180
4.0
20.5
32.5
250
6.5
HCP282730ZC
3.7
200
3.2
27.5
31.5
360
8.5
HCP521238NZC
3.7
200
5.4
13.0
40.5
360
7.0
HCP502025NZC
3.7
200
5.0
20.5
27.0
320
8.5
HCP551726NW
3.7
220
5.5
17.0
28.0
290
5.4
HCP502028ZC
3.7
220
5.0
20.7
30.5
250
8.6
HCP501730ZC
3.7
230
5.0
17.5
32.5
320
7.0
HCP252844FC
3.7
250
3.2
28.5
46.5
250
7.5
HCP402827FC
3.7
250
4.0
28.5
29.5
300
8.5
HCP551730W
3.7
250
5.5
17.5
32.5
250
7.8
HCP552027W
3.7
250
5.5
20.5
29.5
220
8.0
HCP502030W
3.7
250
5.0
20.5
32.5
200
8.9
HCP502030NZC
3.7
250
5.0
20.5
32.5
200
8.9
HCP382730NW
3.7
270
3.8
27.5
32.5
250
7.5
HCP101722W
3.7
270
10.2
17.5
24.0
320
10.5
HCPX552030FC
3.7
275
5.5
20.5
32.5
320
8.5
HCP801528NZC
3.7
280
8.0
15.5
30.0
320
10.5
HCP501828ZC
3.8
290
5.2
18.5
31.0
320
8.0
HCP451743NZC
3.7
300
4.5
17.0
49.0
320
8.5
HCP552028ZC
3.7
300
5.5
20.5
30.0
300
7.0
HCP302938ZC
3.7
310
3.2
29.5
40.5
250
8.5
HCP243540FC
3.8
330
2.4
35.5
42.5
320
9.5
HCP552133NFC
3.7
330
5.5
21.5
35.5
220
9.5
HCP702525NZC
3.7
330
7.2
25.5
27.0
230
12.5
HCP452135NZC
3.8
350
4.5
21.0
37.0
240
9.5
HCP901726NW
3.7
350
9.0
17.0
28.0
200
7.0
HCP322545ZC
3.7
360
3.4
25.5
47.0
320
10.0
HCP742224NFC
3.7
370
7.4
22.0
26.0
320
10.5
HCP652427W
3.7
380
6.5
24.5
29.0
320
11.0
HCP403033ZC
3.7
400
4.0
30.5
35.0
270
8.0
HCP602428W
3.7
400
6.0
24.5
29.5
230
11.5
HCP702127W
3.7
400
7.0
21.5
29.5
250
10.0
HCP801831W
3.7
400
8.0
18.0
33.0
230
10.5
HCP922126ZC
3.7
400
9.2
21.5
28.0
220
10.0
HCP502734W
3.7
420
5.0
27.5
36.5
220
11.5
HCP602040W
3.7
420
6.0
20.5
42.0
300
12.5
HCP402447ZC
3.7
445
4.0
24.5
49.5
250
11.5
HCP302084ZC
3.7
450
3.0
20.5
86.5
220
12.0
HCP542337NZC
3.7
480
5.4
23.5
39.0
230
12.5
HCP353048ZC
3.7
500
3.5
30.5
49.5
230
12.5
HCP402548NZC
3.7
500
4.0
25.0
48.0
320
11.5
HCP443038NFC
3.7
500
4.4
30.5
40.0
220
12.5
HCP652533W
3.7
500
6.5
25.5
35.5
200
12.5
HCP602535PFC
3.7
500
6.0
25.5
36.5
230
12.5
HCP602535ZC
3.7
500
6.0
25.5
36.5
230
13.0
HCP603952NZC
3.7
500
6.0
25.5
37.5
250
9.6
HCP742527NFC
3.7
500
7.4
25.5
29.5
250
12.5
HCP702530NFC
3.7
500
7.0
25.5
32.5
220
12.0
HCP412161NZC
3.7
520
4.1
21.5
63.0
230
13.5
HCP603030NFC
3.7
520
6.0
30.5
32.5
180
13.5
HCP752033NZC
3.7
530
7.5
20.5
35.0
230
12.5
HCP102028NZC
3.7
550
10.0
20.0
30.0
230
14.0
HCP502247FC
3.7
560
5.0
22.5
49.5
180
13.0
HCP452448ZC
3.7
580
4.5
24.5
50.5
230
13.5
HCP452446NFC
3.7
580
4.5
25.0
50.0
250
14.0
HCP502742NW
3.7
580
5.0
27.5
44.5
180
14.0
HCP432548NZC
3.7
600
4.3
25.0
48.0
320
12.5
HCP562248FC
3.7
600
5.6
22.5
50.5
220
14.0
HCP503040NFC
3.7
600
5.3
30.5
42.5
230
14.5
HCP503040PN
3.7
600
5.0
30.5
42.5
270
13.0
HCP601665ZC
3.7
630
6.0
16.5
67.5
220
15.5
HCP284053W
3.7
650
3.0
40.5
55.5
230
14.5
HCP703030NFC
3.7
650
7.0
30.5
30.5
180
14.5
HCP782536NFC
3.7
700
7.8
25.5
38.0
180
16.0
HCP803030W
3.7
700
8.2
30.5
32.0
220
13.5
HCP503240W
3.7
735
5.0
32.5
42.5
180
15.5
HCP433438W
3.8
750
4.6
34.5
40.5
180
14.5
HCP803030NZC
3.7
770
8.0
30.5
32.0
180
17.5
HCP235471ZC
3.7
800
2.5
54.5
78.5
180
20.0
HCP235471W
3.7
800
3.1
54.7
73.5
180
21.0
HCP682940ZC
3.7
800
6.8
29.5
42.0
220
18.0
HCP902042NFC
3.7
800
9.0
20.5
44.0
180
18.5
HCP752050ZC
3.7
850
7.7
20.5
52.5
180
18.5
HCP403058NFC
3.7
900
4.0
30.0
60.5
180
19.0
HCP902248FC
3.7
900
9.0
22.5
50.5
180
21.5
HCP601873NZC
3.7
950
6.0
18.5
75.0
180
18.5
HCP803040ZC
3.7
950
8.0
30.5
42.8
200
23.0
HCP803040NZC
3.7
950
8.0
30.5
43.0
2000
21.5
HCP573246NZC
3.7
1000
5.9
32.0
48.5
180
22.0
HCPX523450NZC
3.7
1000
5.4
34.5
52.5
180
21.0
HCP534740NZC
3.7
1000
5.3
47.5
42.5
180
22.5
HCPX613247NZC
3.7
1000
6.3
32.0
49.5
180
21.0
HCP733534ZC
3.7
1000
7.3
35.5
36.0
180
19.8
HCP503448NZC
3.7
1050
5.0
34.5
50.5
180
24.0
HCP523450NZC
3.7
1050
5.4
34.5
52.5
180
22.0
HCP504046ZC
3.7
1050
5.0
40.5
48.5
180
21.5
HCP533550NZC
3.8
1100
5.3
35.0
52.5
180
20.5
HCP603838ZC
3.7
1100
6.0
38.5
41.0
180
19.5
HCP703440NZC
3.7
1150
7.0
34.5
42.0
200
20.5
HCP703440FC
3.7
1150
7.0
34.5
42.5
180
22.5
HCP403566NFC-3S1P
11.1
1150
12.7
36.5
71.5
280
59.0
HCPX504050PZC
3.7
1180
5.2
40.0
52.5
180
23.0
HCP653248W
3.7
1200
6.5
32.5
49.5
180
22.5
HCP673346NFC
3.7
1200
6.7
33.5
48.5
180
23.5
HCP633449NW
3.7
1200
6.5
34.0
51.5
180
22.5
HCP643450ZC
3.7
1200
6.4
34.5
52.5
180
24.2
HCP603648NW
3.7
1200
6.0
36.0
50.0
180
22.5
HCP603650W
3.7
1200
6.0
36.0
53.0
180
24.5
HCP853437ZC
3.7
1200
8.5
34.5
38.5
180
24.5
HCP503562NZC
3.7
1250
5.0
35.5
64.5
200
24.5
HCP703445NFC
3.7
1250
7.2
34.5
47.0
200
23.5
HCP703448NZC
3.7
1300
7.0
34.5
50.5
180
25.5
HCP534048NZC
3.7
1350
5.5
40.0
50.5
180
24.0
HCP703744NFC
3.7
1350
7.0
37.0
46.5
180
25.5
HCP703943ZC
3.7
1350
7.0
39.5
46.0
180
25.0
HCP703744NFC-3S1P
11.1
1350
7.5
113.5
49.5
360
70.0
HCP503764NZC
3.7
1400
5.0
37.5
66.0
180
26.0
HCP801695PNZC
3.7
1400
8.0
16.8
98.0
180
26.5
HCP454564NZC-2S1P
7.4
1400
9.5
45.5
67.0
300
56.0
HCP754335FC
3.7
1440
7.5
43.0
37.5
180
25.5
HCP315772NFC
3.7
1500
3.3
57.5
74.5
180
27.5
HCP952260W
3.7
1500
9.5
22.5
62.5
180
29.0
HCP605050W
3.7
1600
6.0
50.5
51.5
180
32.0
HCP405055NW
3.7
1610
4.5
50.5
58.0
180
28.5
HCP802294NZC
3.7
1650
8.0
22.5
96.5
180
36.5
HCP584450PZC-2S1P
7.4
1710
12.2
46.7
53.3
230
58.0
HCP694055ZC
3.7
1800
6.9
40.5
57.0
200
32.5
HCP504557ZC-2S1P
7.4
1850
10.6
46.0
61.0
180
55.0
HCP103450PNZC
3.7
1900
10.0
34.5
53.0
180
35.0
HCP103450W
3.7
1900
10.0
34.5
53.0
180
35.0
HCP103450N
3.7
1900
10.0
34.5
58.0
180
35.0
HCP113047FC
3.7
1950
11.2
30.0
50.5
180
33.5
HCP564272FC
3.7
2000
5.6
42.5
74.0
180
35.5
HCP534564W
3.7
2000
5.3
45.5
66.5
180
32.0
HCP534564NZC
3.7
2000
5.3
45.5
66.5
180
32.5
HCP554860W
3.7
2000
5.5
48.5
62.5
180
33.5
HCP1019106NFC
3.7
2000
10.0
19.5
108.0
180
38.0
HCP103450NZC
3.7
2000
10.0
34.5
53.0
180
38.0
HCP104040NZC
3.7
2000
10.2
40.5
43.0
180
36.0
HCP123244ZC
3.7
2030
12.0
32.5
46.0
180
35.0
HCP804055ZC
3.7
2100
8.0
40.5
57.0
200
37.5
HCP634061NFC
3.7
2150
7.0
41.0
64.0
180
34.5
HCP534564NW
3.7
2200
5.5
45.5
67.0
180
36.5
HCP103848ZC
3.7
2200
10.0
38.5
49.5
180
38.5
HCP756060FC-1S2P
3.7
2200
15.5
61.0
63.5
180
109.5
HCP564270NZC
3.7
2300
5.6
42.5
73.0
180
33.5
HCP505165FC-2S1P
7.4
2300
10.5
52.0
68.5
250
69.0
HCP114040FC
3.7
2300
11.6
40.5
42.0
180
39.5
HCP114040ZC
3.7
2300
11.0
40.5
43.0
180.0
39.0
HCP565067NFC-3S1P
11.1
2300
18.0
52.0
71.0
360
116.0
HCP114043NFC
3.7
2350
11.0
40.0
45.0
180
39.5
HCP375292W
3.7
2400
3.9
52.5
94.5
180
39.0
HCPX535178ZC-2S1P
7.4
2400
11.2
51.5
82.0
240
95.0
HCPX535178FC-2S1P
7.4
2400
11.2
51.5
82.0
240
95.0
HCP703875NW-2S1P
7.4
2400
14.6
39.0
78.5
180
80.0
HCP306887NZC
3.7
2500
3.2
68.5
90.0
200
47.0
HCP306887ZC
3.7
2500
3.2
68.5
90.0
200
47.0
HCP763871ZC
3.7
2570
7.6
38.5
73.0
180
42.5
HCP104844NFC
3.7
2600
10.2
48.0
46.5
150
45.0
HCP113453ZC
3.7
2620
11.2
34.0
55.5
200
47.0
HCP104545ZC
3.7
2650
9.9
45.5
46.5
180
41
HCP113355TZC
3.7
2650
11.2
33.5
57.5
180
43.0
HCP705064NFC
3.7
2700
7.0
50.5
65.5
180
45.5
HCP804262W
3.7
2700
8.0
42.6
63.5
180
44.0
HCP685163ZC
3.7
2800
7.0
52.0
65.5
180
45.5
HCP103848NFC-3S1P
11.4
2800
11.6
116.5
54.5
410
126.0
HCP864167FC
3.7
3000
8.6
41.5
69.0
200
48.5
HCP104060NZC
3.7
3000
10.0
40.5
62.5
180
50.5
HCP104060FC
3.7
3000
10.0
40.5
62.0
180
49.5
HCP104060ZC
3.7
3000
10.0
40.5
62.5
180
48.5
HCPX104060FC
3.7
3000
10
40
62.5
180
48.5
HCP1034060NFC
3.7
3000
10.3
40.5
63.0
180
52.5
HCPX516570ZC-2S1P
7.4
3000
10.8
65.6
73.2
200
105.0
HCPX516570FC-2S1P
7.4
3000
10.8
65.6
73.2
200
105
HCP124052ZC
3.7
3100
12.0
40.5
54.0
180
51.5
HCP436185NZC
3.7
3300
4.3
61.5
86.5
180
44.5
HCP705076NFC-3S1P
11.1
3450
22.0
51.0
80.0
280
155.0
HCP455885W
3.7
3500
4.5
58.5
87.0
180
45.5
HCP506290FC
3.7
3850
5.0
62.5
93.0
180
58.5
HCP4553102W
3.8
4000
4.75
53.0
104.5
180
50.0
HCP606090NW
3.7
4000
6.0
60.0
92.5
180
61.5
HCP7532134ZC
3.7
4000
7.5
32.5
137.0
180
65.5
HCP705580ZC
3.7
4000
7.0
55.5
82.5
180
61.5
HCP104065NZC
3.8
4000
10.0
40.5
65.5
180
51.5
HCP103450ZC-1S2P
3.7
4400
20.5
35.0
53.5
180
70.5
HCP103848ZC-1S2P
3.7
4400
20.5
39.0
51.5
180
74.5
HCP477790ZC
3.7
4600
4.7
77.5
92.5
180
65.5
HCP386576ZC-1S2P
3.7
4800
4.6
68.6
167.6
160
75.5
HCP735977NFC
3.7
4800
7.5
59.5
80.5
180
78.0
HCP805085NZC
3.7
4800
8.0
50.5
88.0
180
69.0
HCP5070110ZC
3.7
5000
5.2
70.0
112.5
180
80.0
HCP865580N
3.7
5000
8.8
55.0
82.0
180
75.5
HCP105463NFC
3.7
5000
10.0
54.5
66.0
180
69.0
HCP5149133ZC
3.7
5100
5.1
49.5
135.0
180
67.5
HCP953998NZC
3.7
5200
9.5
39.5
10.8
200
89.5
HCP4664143W
3.7
5800
4.6
64.5
146.0
180
84.0
HCP6955108NZC
3.7
6000
6.9
55.5
110.0
180
80.0
HCP906090W
3.7
6000
9.0
60.5
92.5
180
96.5
HCP906090NZC
3.7
6000
9.0
60.5
92.5
180
96.5
HCP106080NW
3.7
6000
10.2
60.0
82.5
180
100.0
HCP116168NZC
3.7
6200
11.1
61.0
70.0
180
89.0
HCP976077FC-2S1P
7.4
6600
20.0
60.5
80.0
220
178.0
HCP976077NZC-2S1P
7.4
6700
20.0
60.0
80.0
180
172.0
HCP106090NZC
3.7
7000
10.5
60.5
93.0
180
116.5
HCP7545152W-3S1P
11.1
8200
23.2
46.0
156.0
240
302.0
HCP635973W-1S2P
3.8
8900
13.1
60.0
77.0
180
116.0
HCP103685NZC-3S2P
11.1
9000
32.5
39.5
89.0
150
440.0
HCP10559103FC-2S1P
7.4
9300
21.8
60.0
106.0
250
246.0
HCP635973W-1S3P
3.8
13350
19.5
60.5
78.0
180
162.5

Handling Precautions & Guidelines

  • What is the Minimum Order Quantity (MOQ) for batteries?

    As a professional manufacturer, Honcell requires a MOQ of 3,000 pieces. This is because our device startup process necessitates a certain raw material quantity, and producing fewer than 3,000 per batch may not ensure sufficient materials to properly fill the devices or operate the machinery effectively.

    However, if the requested battery model is in stock, the MOQ can be more flexible. We encourage you to contact us to check availability and see if we have a suitable model for your needs.

Learn More

Explore the power of battery with us

Inquiry Now
Latest News
Contact Us

Let Us Know Your Needs And Get A Quick Reply.

I have read and agree 《Privacy Policy》

Submit

Explore the power of battery with us

Inquiry Now
Contact Us

Let Us Know Your Needs And Get A Quick Reply.

I have read and agree 《Privacy Policy》

Submit
