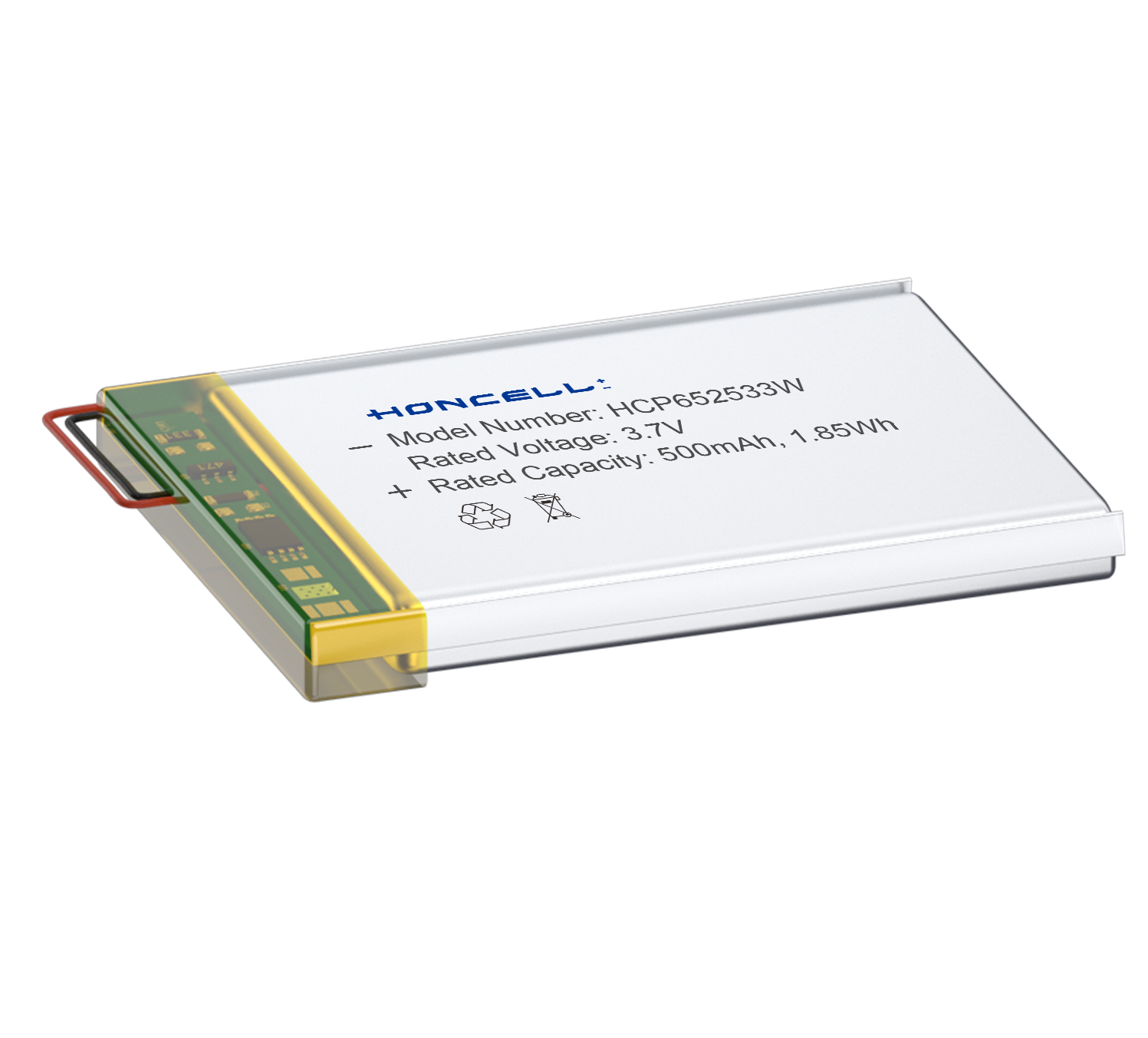

• HCP652533W (1).png
    01/02

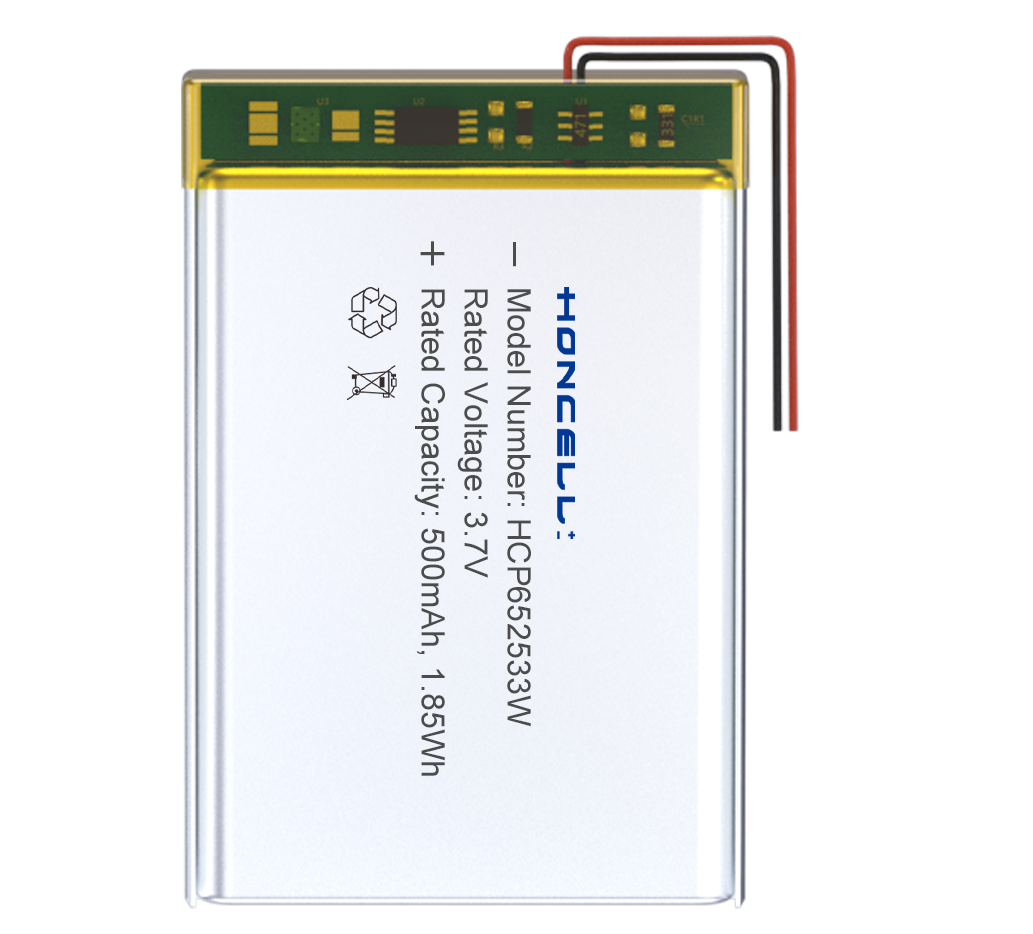

  • HCP652533W (2).png
    02/02

HCP Li-Polymer Battery Packs HCP652533W

Compact and lightweight small size bartteries. Designed for micro devices, wearable tech, and IoT sensors. Ideal for portable and space constrained applications.

  • Parameters
  • Common Applications
  • Other Products
  • Handling Precautions & Guidelines

Parameters

  • Norminal Capacity: 500mAh
  • Rated Voltage: 3.7V
  • Weight: Appr. 12.5g
  • Dimensions (mm): 6.5(T)*25.5(W)*35.5(L)
  • Impedance: Max: 200mΩ
  • Standard Charge/Discharge: 0.2C
  • Max Charge/Discharge: 1C
  • Peak Discharge: 2C
  • Charge Temp: 0-45℃ (32-113℉)
  • Discharge Temp: -20-60℃ (-4-140℉)

HCP Li-Polymer Battery Packs Applications

Other HCP Li-Polymer Battery Packs

Model No. Voltage [V]Capacity [mAh]Thickness [mm]Width [mm]Length [mm]Impedance [≤mΩ]Weight [g]
HCP381120W
3.7
45
3.8
11.5
22.5
700
3.2
HCP202025W
3.7
50
3.0
20.5
27.5
700
3.5
HCP521114ZC
3.7
53
5.2
11.0
16.0
780
3.8
HCP501218NW
3.7
60
5.0
12.5
20.5
700
3.5
HCP501218W
3.7
60
5.0
12.5
20.5
680
2.9
HCP301520W
3.7
65
3.0
15.5
22.5
660
3.0
HCP451220W
3.7
70
4.6
12.6
22.5
620
3.5
HCP501021W
3.7
70
5.0
10.5
23.5
700
4.5
HCP501220W
3.7
80
5.0
12.0
22.5
560
3.3
HCP451223NZC
3.7
85
5.0
12.5
25.0
570
4.0
HCP301135W
3.7
90
3.0
11.5
37.0
420
3.5
HCP381920W
3.7
90
3.8
19.7
22.5
420
3.5
HCP292022NW
3.7
98
3.1
20.0
24.0
400
5.0
HCP302222W
3.7
100
3.0
22.5
24.5
440
4.5
HCP401130ZC
3.7
105
4.0
11.5
32.5
420
5.5
HCP421624W
3.7
105
4.2
16.5
26.5
400
3.5
HCP401229ZC
3.7
120
4.0
12.0
31.0
420
4.5
HCP481619FC
3.7
120
4.0
12.0
31.0
420
4.5
HCP481624FC
3.7
120
4.8
16.5
26.5
300
4.5
HCP481624W
3.7
120
4.8
16.5
26.5
320
4.5
HCP432020NZC
3.7
120
4.3
20.0
22.0
410
5.2
HCP402025ZC
3.7
140
4.0
20.5
27.0
320
6.0
HCP501232W
3.7
145
5.0
12.5
34.5
320
5.5
HCP441526ZC
3.7
150
4.6
15.0
28.0
320
6.0
HCP621919FC
3.7
150
6.2
19.5
21.5
270
6.5
HCP272332W
3.7
165
3.0
23.5
34.0
420
5.5
HCP421529W
3.7
170
4.25
15.5
31.0
320
6.0
HCP401926ZC
3.7
180
4.0
19.5
28.5
320
6.5
HCP402030ZC
3.7
180
4.0
20.5
32.5
250
6.5
HCP282730ZC
3.7
200
3.1
27.0
32.0
350
6.0
HCP521238NZC
3.7
200
5.4
13.0
40.5
360
7.0
HCP502025NZC
3.7
200
5.0
20.5
27.0
320
7.0
HCP551726NW
3.7
220
5.5
17.0
28.0
290
7.0
HCP502028ZC
3.7
220
5.0
20.7
30.0
290
7.0
HCP501730ZC
3.7
230
5.0
17.5
32.5
320
7.0
HCP602025W
3.7
240
6.2
20.5
27.5
320
7.0
HCP252844FC
3.7
250
3.2
28.5
46.5
250
7.5
HCP402827FC
3.7
250
4.0
28.5
29.5
300
8.5
HCP551730W
3.7
250
5.5
17.5
32.5
250
7.8
HCP552027W
3.7
250
5.5
20.5
29.5
220
8.0
HCP502030W
3.7
250
5.0
20.5
32.5
220
8.0
HCP502030NZC
3.7
250
5.0
20.5
32.5
240
8.0
HCP382730NW
3.7
270
3.8
27.5
32.5
250
7.5
HCP101722W
3.7
270
10.2
17.5
24.0
320
7.5
HCPX552030FC
3.7
275
5.5
20.5
32.5
280
8.5
HCP801528NZC
3.7
280
8.0
15.5
30.5
320
8.5
HCP501828ZC
3.8
290
5.2
18.5
31.0
320
8.0
HCP451743NZC
3.7
300
4.5
17.0
49.0
320
8.5
HCP552028ZC
3.7
300
5.5
20.5
30.0
300
9.0
HCP302938ZC
3.7
310
3.2
29.5
40.5
250
8.5
HCP243540FC
3.8
330
2.4
35.5
47.0
320
9.0
HCP552133NFC
3.7
330
5.5
21.5
35.5
220
9.5
HCP702525NZC
3.7
330
7.0
25.5
27.5
320
12.0
HCP452135NZC
3.8
350
4.5
21.0
37.0
240
9.5
HCP901726NW
3.7
350
9.0
17.0
28.0
200
10.5
HCP322545ZC
3.7
360
3.2
25.5
47.5
240
9.5
HCP742224NFC
3.7
370
7.4
22.0
26.0
250
9.6
HCP652427W
3.7
380
6.5
24.5
29.5
250
9.5
HCP403033ZC
3.7
400
4.0
30.5
35.5
270
10.5
HCP602428W
3.7
400
6.0
24.5
30.0
220
10.0
HCP702127W
3.7
400
7.0
21.5
29.5
250
10.0
HCP801831W
3.7
400
8.0
18.0
33.0
250
10.5
HCP922126ZC
3.7
400
9.2
21.5
28.0
220
10.0
HCP403040FC
3.7
420
4.0
30.5
42.5
200
11
HCP502734W
3.7
420
5.0
27.5
36.5
220
11.5
HCP602040W
3.7
420
6.0
20.5
42.0
250
11.0
HCP402447ZC
3.7
445
4.0
24.5
49.5
250
11.5
HCP302084ZC
3.7
450
3.0
20.5
86.5
220
12.0
HCP652134W
3.7
450
6.5
21.5
36.5
240
7.5
HCP801740W
3.7
470
8.0
17.5
42.5
240
12.5
HCP542337NZC
3.7
480
5.4
23.5
39.5
230
12.0
HCP353048ZC
3.7
500
3.5
30.5
50.5
200
13.5
HCP402548NZC
3.7
500
4.0
25.0
50.0
220
12.0
HCP443038NFC
3.7
500
4.4
30.5
40.0
220
12.5
HCP652533W
3.7
500
6.5
25.5
35.5
200
12.5
HCP602535ZC
3.7
500
6.0
25.5
36.5
220
12.5
HCP602535PFC
3.7
500
6.0
25.5
37.0
240
12.5
HCP602535FC
3.7
500
6.0
25.5
37.0
210
12.5
HCP742527NFC
3.7
500
7.4
25.5
29.5
250
12.5
HCP702530NFC
3.7
500
7.0
25.5
32.5
220
12.0
HCP603030NFC
3.7
520
6.0
30.5
32.5
180
13.5
HCP752033NZC
3.7
530
7.5
20.5
35.0
220
12.6
HCP702335ZC
3.7
550
7.0
23.5
37.5
240
12.5
HCP102028NZC
3.7
550
10.0
20.0
30.0
220
14.0
HCP502247FC
3.7
560
5.0
22.5
49.5
180
13.0
HCP452448ZC
3.7
580
4.5
24.5
50.5
200
14.0
HCP452446NFC
3.7
580
4.5
25.0
50.0
250
14.0
HCP502742NW
3.7
580
5.0
27.5
44.5
180
14.0
HCP432548NZC
3.7
600
4.5
25.0
50.0
220
14.5
HCP562248FC
3.7
600
5.6
22.5
50.5
220
14.0
HCP503040NFC
3.7
600
5.3
30.5
42.5
240
14.5
HCP503040PN
3.7
600
5.0
30.5
42.5
270
13.0
HCP601665ZC
3.7
630
6.0
16.5
67.5
220
15.5
HCP284053W
3.7
650
3.0
40.5
56.0
220
15.0
HCP703030NFC
3.7
650
7.0
30.5
32.5
190
15.0
HCP782536NFC
3.7
700
7.8
25.5
38.5
180
16.5
HCP803030W
3.7
700
8.2
30.5
32.5
220
17.5
HCP503240W
3.7
735
5.0
32.5
42.5
180
15.5
HCP433438W
3.8
750
4.55
34.5
40.5
200
14.0
HCP412161NZC
3.7
770
4.1
21.5
63.5
250
13.5
HCP803030NZC
3.7
770
8.0
30.5
32.5
320
17.5
HCP235471ZC
3.7
800
2.5
54.5
78.5
180
20.0
HCP235471W
3.7
800
3.1
54.7
73.5
220
21.0
HCP682940ZC
3.7
800
6.8
29.5
42.0
220
18.0
HCP902042NFC
3.7
800
9.0
20.5
44.5
230
18.5
HCP752050ZC
3.7
850
7.7
20.5
52.5
180
18.5
HCP403058NFC
3.7
900
4.0
30.0
60.5
180
19.0
HCP902248FC
3.7
900
9.0
22.5
50.5
180
20.5
HCP601873NZC
3.7
950
6.0
18.5
75.5
230
18.5
HCP803040ZC
3.7
950
8.0
30.5
42.8
250
23.0
HCP803040NZC
3.7
950
8.0
30.5
43.0
180
21.5
HCP573246NZC
3.7
1000
5.9
32.0
48.5
180
22.0
HCPX523450NZC
3.7
1000
5.4
34.5
52.5
180
21.0
HCP534740NZC
3.7
1000
5.3
47.5
42.5
180
23.0
HCPX613247NZC
3.7
1000
6.3
32.0
49.5
180
21.0
HCP603443NFC
3.7
1000
6.0
34.5
46.0
180
19.5
HCP733534ZC
3.7
1000
7.3
35.5
37.0
200
21.0
HCP503448NZC
3.7
1050
5.0
34.5
50.5
180
24.0
HCP523450NZC
3.7
1050
5.4
34.5
52.5
180
22.0
HCP504046ZC
3.7
1050
5.0
40.5
48.5
180
21.5
HCP533550NZC
3.8
1100
5.3
35.0
52.5
180
20.5
HCP603838ZC
3.7
1100
6.0
38.5
41.0
180
19.5
HCP703442NFC
3.7
1100
7.0
34.5
45.0
180
23.0
HCP703440NZC
3.7
1150
7.0
34.5
42.0
200
20.5
HCP703440FC
3.7
1150
7.0
34.5
42.5
180
22.5
HCP403566NFC-3S1P
11.1
1150
12.7
36.5
71.5
280
59.0
HCPX504050PZC
3.7
1180
5.2
40.0
52.5
180
23.0
HCP653248W
3.7
1200
6.5
32.5
50.5
180
24.0
HCP673346NFC
3.7
1200
6.7
33.5
48.5
180
23.5
HCP633449NW
3.7
1200
6.5
34.0
51.5
180
22.5
HCP643450ZC
3.7
1200
6.4
34.5
52.5
150
24.0
HCP603648NW
3.7
1200
6.0
36.0
50.0
180
22.5
HCP603650W
3.7
1200
6.0
36.0
53.0
200
24.5
HCP853437ZC
3.7
1200
8.5
34.5
40.0
200
24.5
HCP503562NZC
3.7
1250
5.0
35.5
64.5
200
24.5
HCP703445NFC
3.7
1250
7.2
34.5
47.0
200
23.5
HCP703448NZC
3.7
1300
7.0
34.5
50.5
180
25.5
HCP534048NZC
3.7
1350
5.5
40.0
50.5
200
29.0
HCP703744NFC
3.7
1350
7.0
37.0
46.5
180
25.5
HCP703943ZC
3.7
1350
7.0
39.5
46.0
180
25.0
HCP703744NFC-3S1P
11.1
1350
7.5
113.5
49.5
360
70.0
HCP503764NZC
3.7
1400
5.0
37.5
67.0
180
26.0
HCP603952NZC
3.7
1400
6.2
39.5
53.8
200
26.5
HCP801695PNZC
3.7
1400
8.0
16.8
98.0
180
26.5
HCP454564NZC-2S1P
7.4
1400
9.5
45.5
67.0
300
56.0
HCP754335FC
3.7
1440
7.5
43.0
37.5
180
25.5
HCP315772NFC
3.7
1500
3.3
57.5
75.0
180
28.0
HCP952260W
3.7
1500
9.5
22.5
62.5
180
29.0
HCP605050W
3.7
1600
6.0
50.5
53.0
180
32.0
HCP405055NW
3.7
1610
4.5
50.5
58.0
180
28.5
HCP802294NZC
3.7
1650
8.0
22.5
96.5
180
36.5
HCP584450PZC-2S1P
7.4
1710
12.2
46.7
53.3
200
58.0
HCP694055ZC
3.7
1800
6.9
40.5
57.0
180
32.5
HCP103450ZC
3.7
1800
10.2
34.5
52.5
180
36.5
HCP103450FC
3.7
1800
10.2
34.5
52.5
180
36.5
HCP103450NZC-2S1P
7.4
1800
20.5
35.0
53.5
280
71.0
HCP504557ZC-2S1P
7.4
1850
10.6
46.0
60.5
240
73.0
HCP804653NFC
3.7
1900
8.0
46.5
56.0
180
40.5
HCP103450PNZC
3.7
1900
10.0
34.5
53.0
150
35.0
HCP103450W
3.7
1900
10.0
34.5
53.0
150
35.0
HCP103450N
3.7
1900
10.0
34.5
58.0
150
35.0
HCP113047FC
3.7
1950
11.2
30.0
50.5
180
33.5
HCP564272FC
3.7
2000
5.6
42.5
75.0
180
34.0
HCP534564W
3.7
2000
5.3
45.5
66.5
180
32.0
HCP534564NZC
3.7
2000
5.3
45.5
66.5
180
32.5
HCP554860W
3.7
2000
5.5
48.5
62.5
180
33.5
HCP903562ZC
3.7
2000
9.0
35.5
65.0
180
40.5
HCP1019106NFC
3.7
2000
10.0
19.5
108.0
180
38.0
HCP103450NZC
3.7
2000
10.0
34.5
53.0
180
38.0
HCP104040NZC
3.7
2000
10.2
40.5
43.0
180
33.0
HCP123244ZC
3.7
2030
12.0
32.5
46.0
180
35.0
HCP804055ZC
3.7
2100
8.0
40.5
57.0
180
37.5
HCP634061NFC
3.7
2150
7.0
41.0
64.0
180
34.5
HCP534564NW
3.7
2200
5.5
45.5
67.0
180
36.5
HCP103848ZC
3.7
2200
10.0
38.5
49.5
180
40.3
HCP756060FC-1S2P
3.7
2200
15.5
61.0
63.5
180
109.5
HCP564270NZC
3.7
2300
5.6
42.5
73.0
180
33.5
HCP505165FC-2S1P
7.4
2300
10.5
52.0
68.5
280
69.0
HCP114040FC
3.7
2300
11.6
40.5
42.0
200
40.0
HCP114040ZC
3.7
2300
11.0
40.5
43.0
180.0
39.0
HCP565067NFC-3S1P
11.1
2300
18.0
52.0
71.0
360
116.0
HCP114043NFC
3.7
2350
11.0
40.0
45.0
180
39.0
HCP375292W
3.7
2400
3.9
52.5
94.5
180
39.0
HCPX535178ZC-2S1P
7.4
2400
11.2
51.5
82.0
240
95.0
HCPX535178FC-2S1P
7.4
2400
11.2
51.5
82.0
240
95.0
HCP703875NW-2S1P
7.4
2400
14.6
39.0
78.5
180
80.0
HCP306887NZC
3.7
2500
3.2
68.5
90.0
200
47.0
HCP306887ZC
3.7
2500
3.2
68.5
90.0
200
47.0
HCP763871ZC
3.7
2570
7.6
38.5
73.0
180
42.5
HCP104844NFC
3.7
2600
10.2
48.0
46.5
150
45.0
HCP113453ZC
3.7
2620
11.2
34.0
55.5
200
48.0
HCP104545ZC
3.7
2650
10.2
45.5
47.0
150
47.0
HCP113355TZC
3.7
2650
11.2
33.5
57.5
200
39.0
HCP705064NFC
3.7
2700
7.0
50.5
66.0
120
45.0
HCP804262W
3.7
2700
8.0
42.0
64.5
180
44.0
HCP703986NW
3.7
2800
7.0
39.5
89.0
180
48.0
HCP685163ZC
3.7
2800
7.0
52.0
66.0
180
47.5
HCP103848NFC-3S1P
11.4
2800
11.6
116.5
54.5
410
126.0
HCP864167FC
3.7
3000
8.6
41.5
69.0
180
48.5
HCP104060NZC
3.7
3000
10.0
40.5
62.5
180
50.5
HCP104060FC
3.7
3000
10.0
40.0
62.5
180
46.0
HCP104060ZC
3.7
3000
10.0
40.5
62.5
180
48.5
HCPX104060FC
3.7
3000
10.0
40.0
62.5
180
50.5
HCP1034060NFC
3.7
3000
10.3
40.5
63.0
180
52.5
HCPX516570ZC-2S1P
7.4
3000
10.8
65.6
73.2
200
105.0
HCPX516570FC-2S1P
7.4
3000
10.8
65.6
73.2
200
105
HCP124052ZC
3.7
3100
12.0
40.5
55.0
180
52.0
HCP436185NZC
3.7
3300
4.3
61.5
88.0
180
45.5
HCP705076NFC-3S1P
11.1
3450
22.0
51.0
80.0
280
155.0
HCP455885W
3.8
3500
4.5
58.5
88.0
180
46.0
HCP855160NFC
3.7
3700
8.7
51.0
62.0
150
53.5
HCP506290FC
3.7
3850
5.0
62.5
93.0
180
58.5
HCP4553102W
3.8
4000
4.75
53.0
104.5
180
50.0
HCP606090NW
3.7
4000
6.0
60.0
92.5
180
61.5
HCP7532134ZC
3.7
4000
7.5
32.5
137.0
180
65.5
HCP705580ZC
3.7
4000
7.0
55.5
82.5
180
61.5
HCP104065NZC
3.8
4000
10.0
40.5
68.0
180
52.5
HCP974774W-3S1P
11.1
4000
25.5
47.0
78.0
280
197.0
HCP103450ZC-1S2P
3.7
4400
20.5
35.0
53.5
180
70.5
HCP103848ZC-1S2P
3.7
4400
20.5
39.0
51.5
180
74.5
HCP477790ZC
3.7
4600
4.7
77.5
92.5
210
68.5
HCP386576ZC-1S2P
3.7
4800
4.6
68.6
167.6
160
75.5
HCP735977NFC
3.7
4800
7.5
59.5
80.0
180
78.0
HCP805085NZC
3.7
4800
8.0
50.5
88.0
180
69.0
HCP5070110ZC
3.7
5000
5.2
70.0
112.5
180
80.0
HCP865580N
3.7
5000
8.6
55.0
82.5
180
75.5
HCP105463NFC
3.7
5000
10.0
54.5
66.0
180
69.0
HCP5149133ZC
3.7
5100
5.1
49.5
135.0
180
67.5
HCP953998NZC
3.7
5200
9.5
39.5
100.8
180
73.5
HCP4664143W
3.7
5800
4.6
64.5
146.0
180
84.0
HCP6955108NZC
3.7
6000
6.9
55.5
110.0
180
82.0
HCP906090NZC
3.7
6000
9.0
60.5
92.5
180
93.0
HCP906090W
3.7
6000
9.0
60.5
93.5
180
105.0
HCP106080NW
3.7
6000
10.2
60.0
82.5
180
100.0
HCP116168NZC
3.7
6200
11.1
61.0
70.0
120
89.0
HCP976077FC-2S1P
7.4
6600
20.0
60.5
80.0
200
175.0
HCP976077NZC-2S1P
7.4
6700
20.0
60.0
80.0
180
172.0
HCP106090NZC
3.7
7000
10.5
60.5
93.0
180
116.5
HCP7545152W-3S1P
11.1
8200
23.2
46.0
156.0
300
372.0
HCP635973W-1S2P
3.8
8900
13.1
60.0
77.0
250
116.0
HCP103685NZC-3S2P
11.1
9000
32.5
39.5
89.0
150
440.0
HCP10559103FC-2S1P
7.4
9300
21.8
60.0
106.0
250
246.0
HCP635973W-1S3P
3.8
13350
19.5
60.5
78.0
180
162.5

Handling Precautions & Guidelines

  • Can the battery be customized?

    Yes, we provide tailored solutions to meet our customers' precise needs. Our customization options include size, capacity, voltage, maximum discharge rate, and other parameters. Contact us to explore how we can create a battery solution that fits your requirements perfectly.

  • Are there any special storage requirements for the battery?

    Li-ion batteries should be stored in a cool, dry place, shielded from direct sunlight and heat sources. Following our storage guidelines is advisable to ensure optimal battery performance and safety.

  • What is the charging time of the battery?

    Generally, Honcell's batteries can be fully charged in 0.5 to 3 hours, depending on the charging current and the capacity of the battery.

Learn More

Explore the power of battery with us

Inquiry Now
Latest News
Contact Us

Let Us Know Your Needs And Get A Quick Reply.

I have read and agree 《Privacy Policy》

Submit

Explore the power of battery with us

Inquiry Now
Contact Us

Let Us Know Your Needs And Get A Quick Reply.

I have read and agree 《Privacy Policy》

Submit
