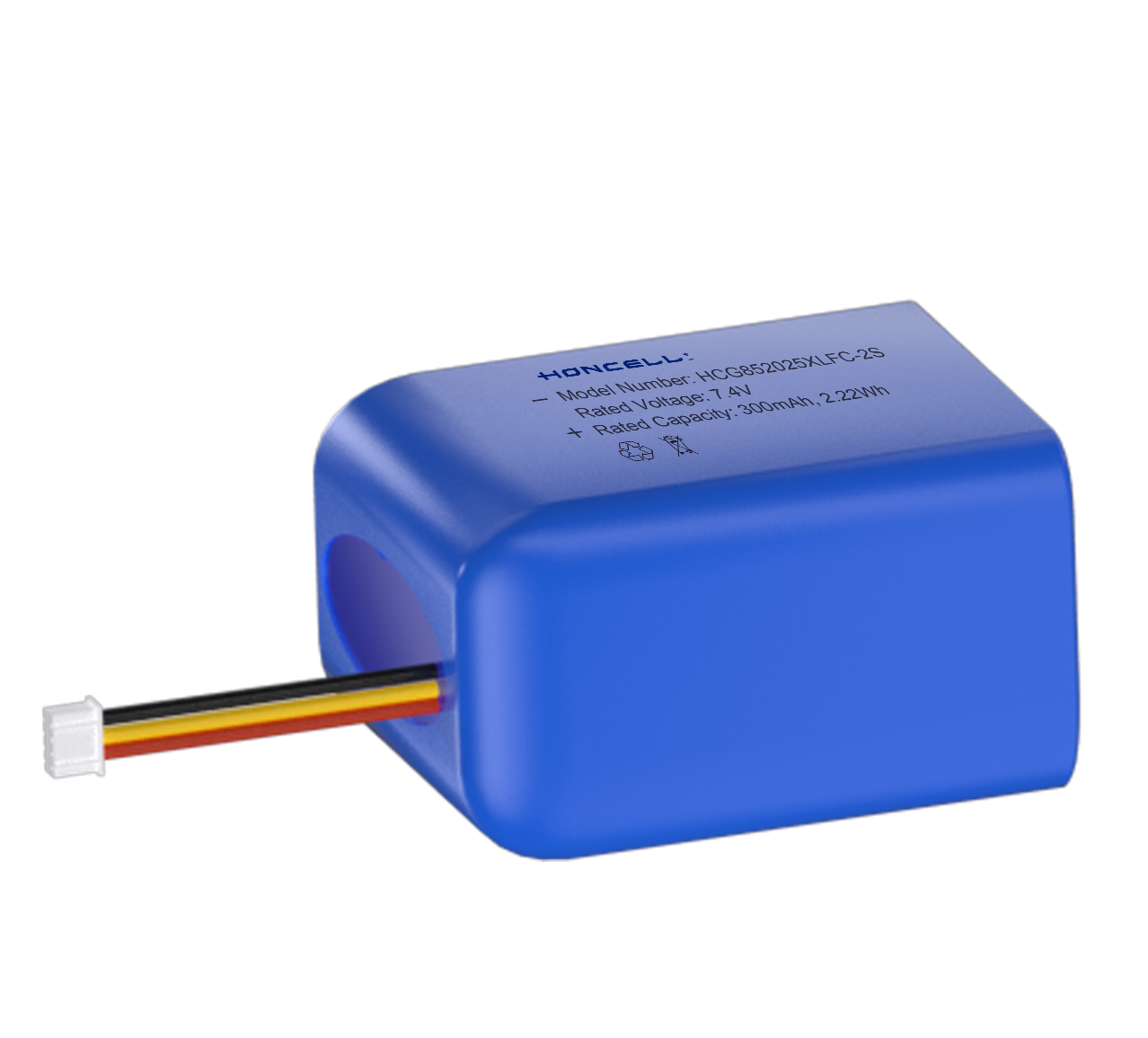

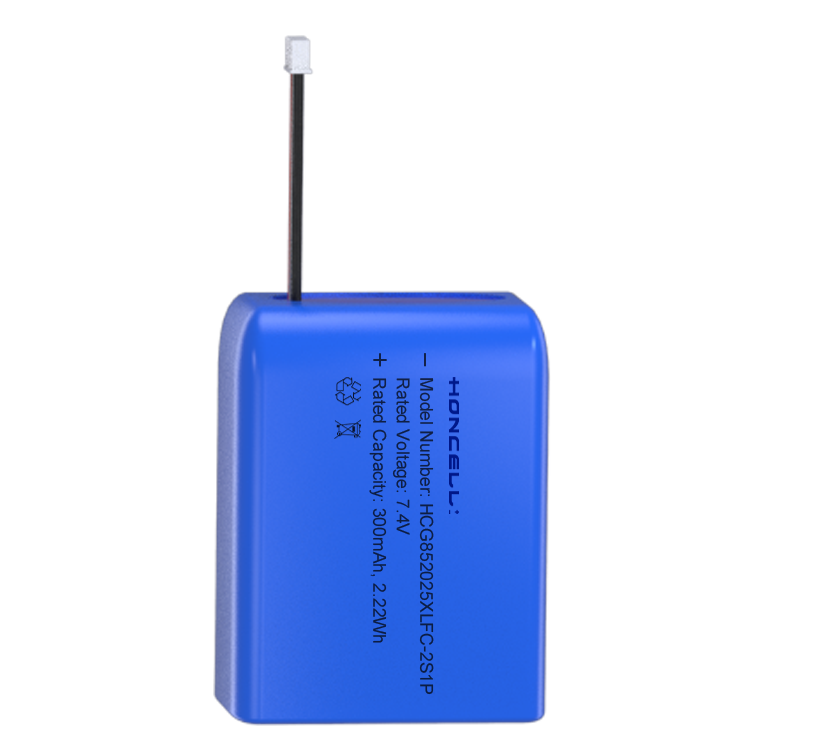

HCG High Drain Lipo Battery Packs HCG852025FC-2S1P
-
Parameters
-
Common Applications
-
Other Products
-
Handling Precautions & Guidelines
Parameters
-
Norminal Capacity: 300mAh -
Rated Voltage: 7.4V -
Dimensions (mm): 18(T)*22(W)*30(L) -
Max. Discharge: 6.7C -
Standard Charge/Discharge: 0.2C -
Max Charge/Discharge: 1.0C -
Peak Discharge: 13.3C -
Charge Temp.: 0-45℃ (32-113℉) -
Discharge Temp.: -20-60℃ (-4-140℉)
HCG High Drain Lipo Battery Packs Applications
Other HCG High Drain Lipo Battery Packs
| Model No. | Voltage[v] | Capacity(mAh) | Thickness | Width [mm] | Length [mm] | Max. Discharge [C] | Peak Discharge [C] |
|---|---|---|---|---|---|---|---|
3.7 | 50 | 6.3 | 13.5 | 22 | 1.0 | 35 | |
3.7 | 200 | 7.6 | 14.5 | 36 | 15 | 35 | |
7.4 | 270 | 10.6 | 21 | 37.5 | 10 | 20C | |
7.4 | 300 | 10 | 15.2 | 47.5 | 0.5 | 6.67 | |
7.4 | 300 | 18 | 22 | 30 | 6.7 | 13.3 | |
7.4 | 1050 | 26.7 | 30.5 | 38 | 2.86 | 10 |
Handling Precautions & Guidelines
-
Can the battery be customized?
Yes, we provide tailored solutions to meet our customers' precise needs. Our customization options include size, capacity, voltage, maximum discharge rate, and other parameters. Contact us to explore how we can create a battery solution that fits your requirements perfectly.
-
What is the charging time of the battery?
Generally, Honcell's batteries can be fully charged in 0.5 to 3 hours, depending on the charging current and the capacity of the battery.
