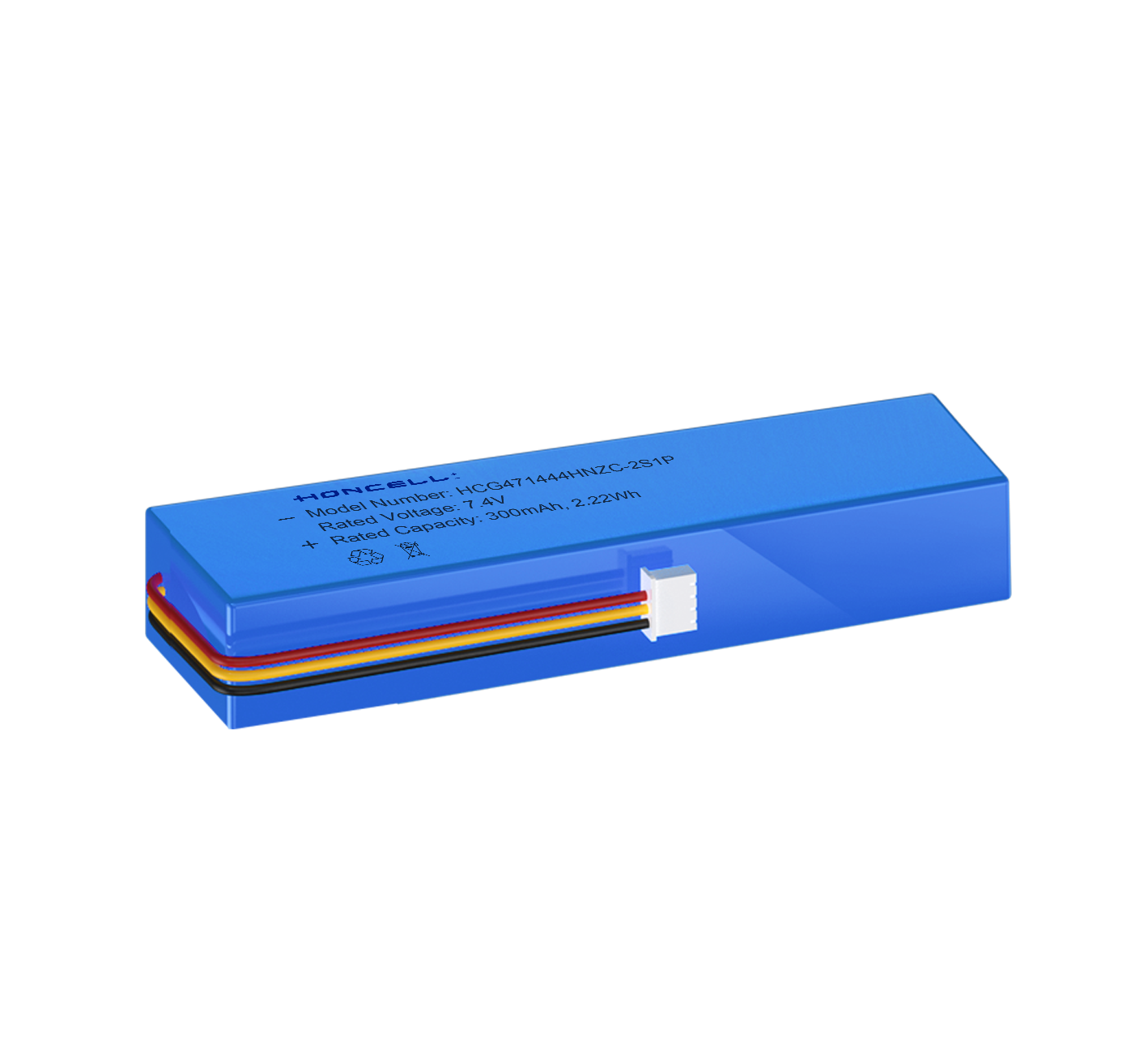

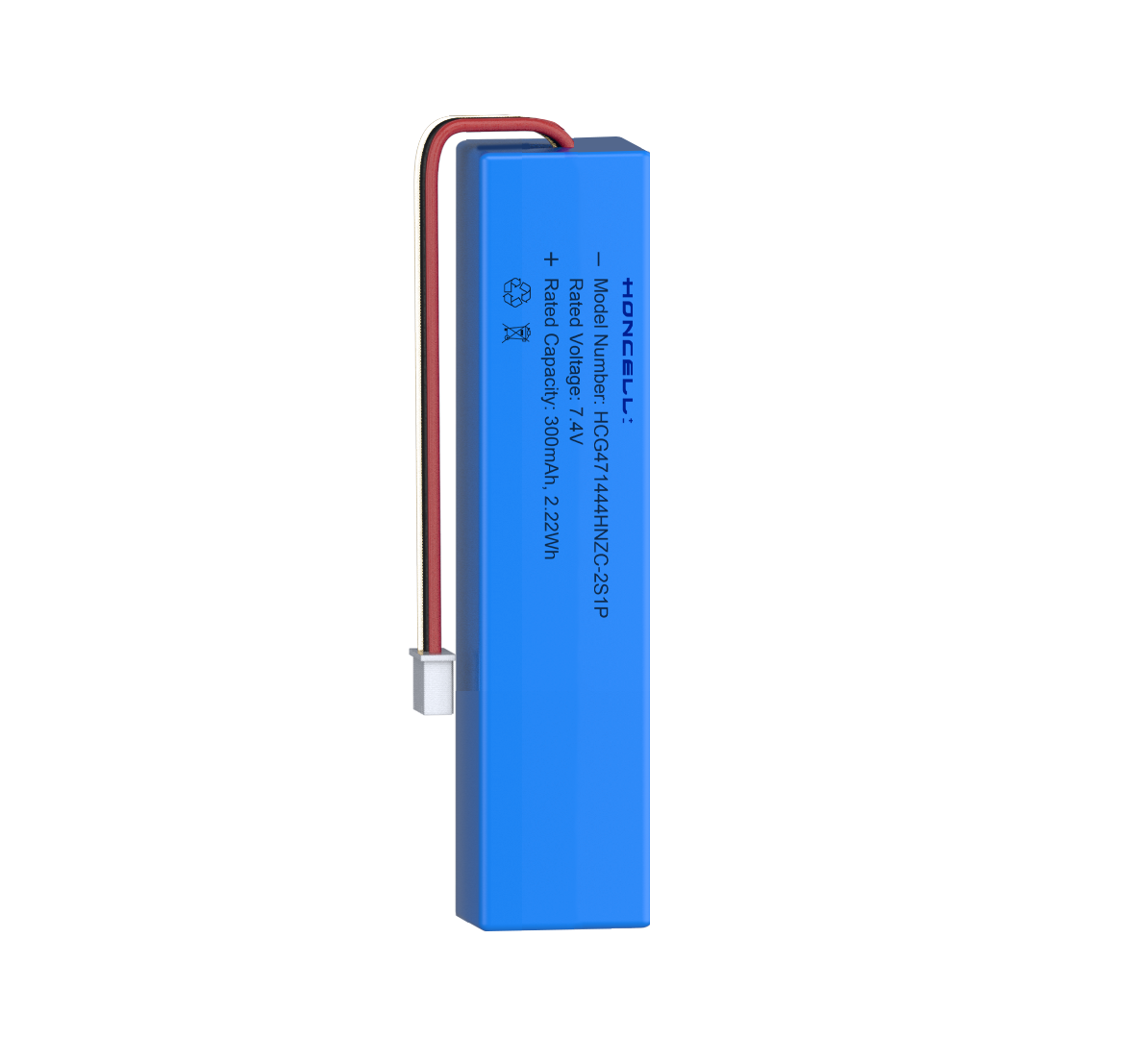

HCG High-Drain Li-polymer Battery Packs HCG471444HNZC-2S1P
-
Parameters
-
Common Applications
-
Other Products
-
Handling Precautions & Guidelines
Parameters
-
Norminal Capacity: 300mAh -
Rated Voltage: 7.4V -
Dimensions (mm): 10.0(T)*15.2(W)*47.5(L) -
Max. Discharge: 0.5C -
Standard Charge/Discharge: 0.2C -
Max Charge/Discharge: 0.5C -
Peak Discharge: 6.67C -
Charge Temp: 0-45℃ (32-113℉) -
Discharge Temp: -20-70℃ (-4-158℉)
HCG High-Drain Li-polymer Battery Packs Applications
Other HCG High-Drain Li-polymer Battery Packs
| Model No. | Voltage[v] | Capacity(mAh) | Thickness | Width [mm] | Length [mm] | Max. Discharge [C] | Peak Discharge [C] |
|---|---|---|---|---|---|---|---|
3.7 | 50 | 6.3 | 13.5 | 22 | 1.0 | 35 | |
3.7 | 100 | 4.5 | 15.0 | 35.0 | 15 | 30 | |
3.7 | 100 | 4.5 | 15.0 | 35.0 | 15 | 30 | |
3.7 | 200 | 7.6 | 14.5 | 36.0 | 15 | 35 | |
7.4 | 270 | 10.6 | 21.0 | 37.5 | 10 | ||
7.4 | 300 | 10.0 | 15.2 | 47.5 | 0.5 | 6.67 | |
7.4 | 300 | 18.0 | 22.0 | 30.0 | 6.7 | 13.3 | |
7.4 | 1050 | 26.7 | 30.5 | 38.0 | 2.86 | 10 | |
14.8 | 5400 | 36.0 | 52.0 | 122 | 5 | 10 |
Handling Precautions & Guidelines
-
What is the Minimum Order Quantity (MOQ) for batteries?
As a professional manufacturer, Honcell requires a MOQ of 3,000 pieces. This is because our device startup process necessitates a certain raw material quantity, and producing fewer than 3,000 per batch may not ensure sufficient materials to properly fill the devices or operate the machinery effectively.
However, if the requested battery model is in stock, the MOQ can be more flexible. We encourage you to contact us to check availability and see if we have a suitable model for your needs.
