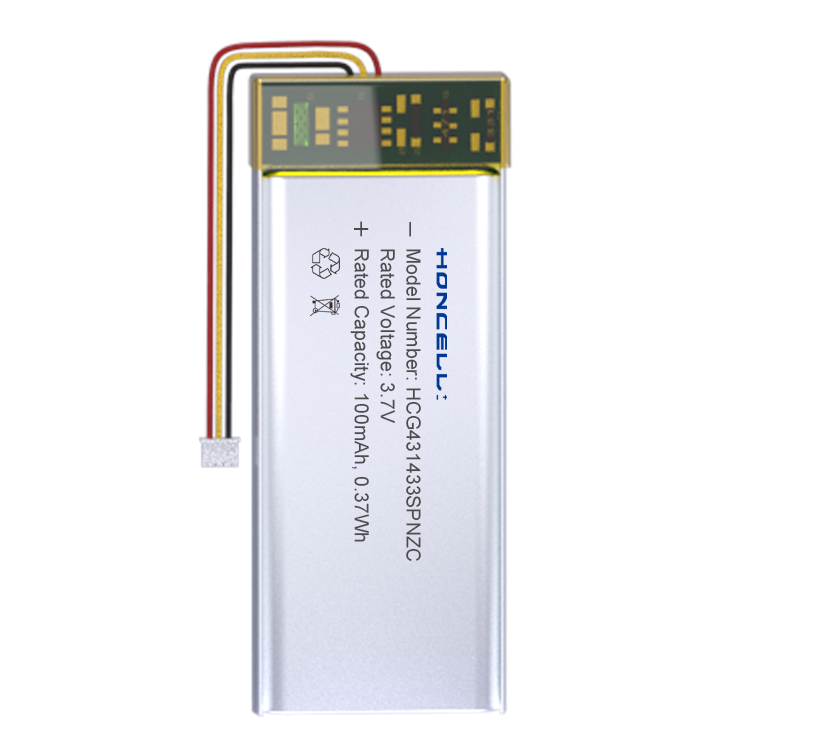

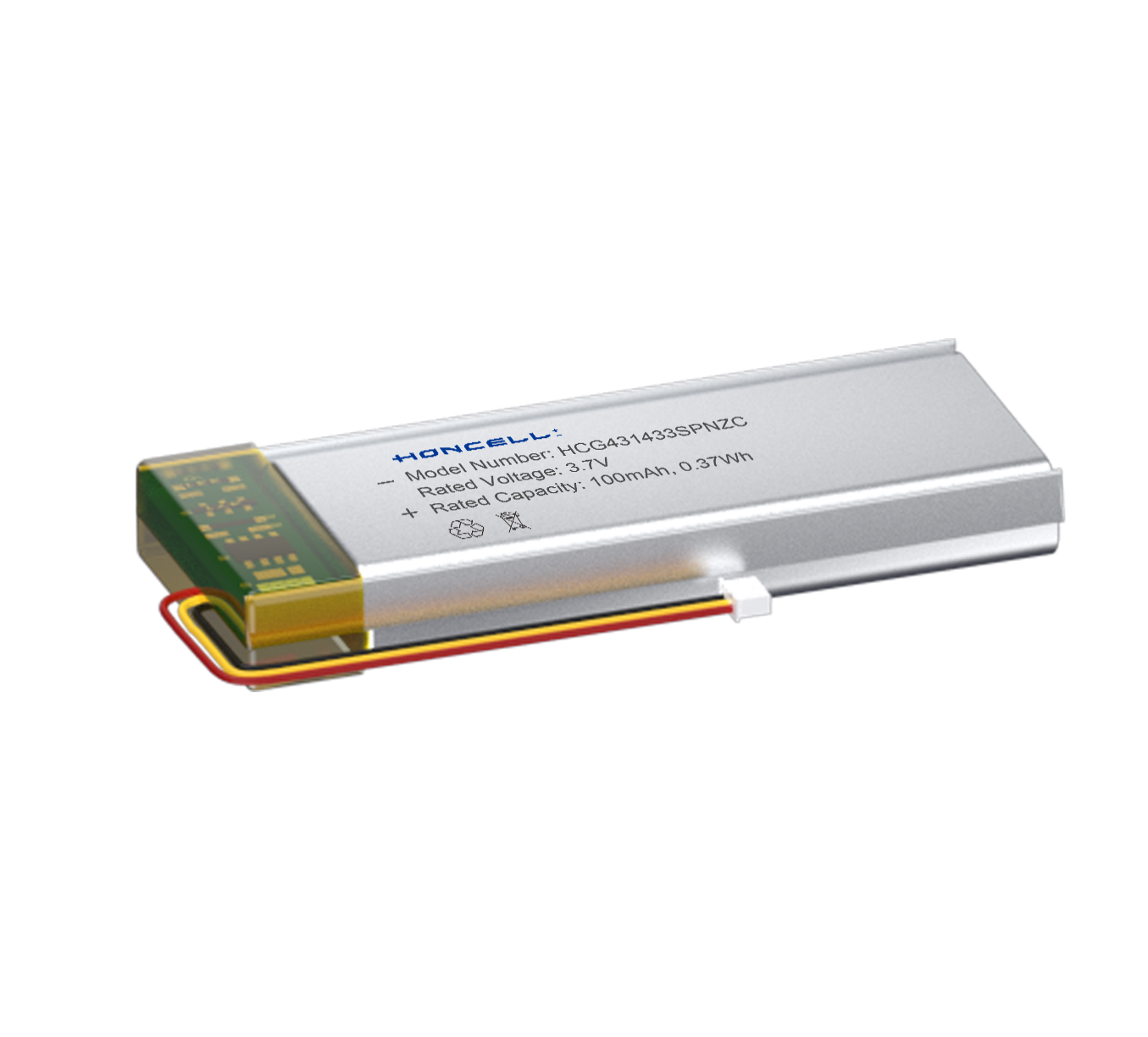

HCG High-Drain Li-polymer Battery Packs HCG431433SPNZC
-
Parameters
-
Common Applications
-
Other Products
-
Handling Precautions & Guidelines
Parameters
-
Norminal Capacity: 100mAh -
Rated Voltage: 3.7V -
Dimensions (mm): 4.5(T)*15.0(W)*35.0(L) -
Max. Discharge: 15C -
Standard Charge/Discharge: 0.2C -
Max Charge/Discharge: 1C/15C -
Peak Discharge: 30C -
Charge Temp: 0-45℃ (32-113℉) -
Discharge Temp: -10-55℃ (-4-140℉)
HCG High-Drain Li-polymer Battery Packs Applications
Other HCG High-Drain Li-polymer Battery Packs
| Model No. | Voltage[v] | Capacity(mAh) | Thickness | Width [mm] | Length [mm] | Max. Discharge [C] | Peak Discharge [C] |
|---|---|---|---|---|---|---|---|
3.7 | 50 | 6.3 | 13.5 | 22 | 1.0 | 35 | |
3.7 | 100 | 4.5 | 15.0 | 35.0 | 15 | 30 | |
3.7 | 100 | 4.5 | 15.0 | 35.0 | 15 | 30 | |
3.7 | 200 | 7.6 | 14.5 | 36.0 | 15 | 35 | |
7.4 | 270 | 10.6 | 21.0 | 37.5 | 10 | ||
7.4 | 300 | 10.0 | 15.2 | 47.5 | 0.5 | 6.67 | |
7.4 | 300 | 18.0 | 22.0 | 30.0 | 6.7 | 13.3 | |
7.4 | 1050 | 26.7 | 30.5 | 38.0 | 2.86 | 10 | |
14.8 | 5400 | 36.0 | 52.0 | 122 | 5 | 10 |
Handling Precautions & Guidelines
-
Can the battery be customized?
Yes, we provide tailored solutions to meet our customers' precise needs. Our customization options include size, capacity, voltage, maximum discharge rate, and other parameters. Contact us to explore how we can create a battery solution that fits your requirements perfectly.
-
Are there any special storage requirements for the battery?
Li-ion batteries should be stored in a cool, dry place, shielded from direct sunlight and heat sources. Following our storage guidelines is advisable to ensure optimal battery performance and safety.
-
What is the charging time of the battery?
Generally, Honcell's batteries can be fully charged in 0.5 to 3 hours, depending on the charging current and the capacity of the battery.
