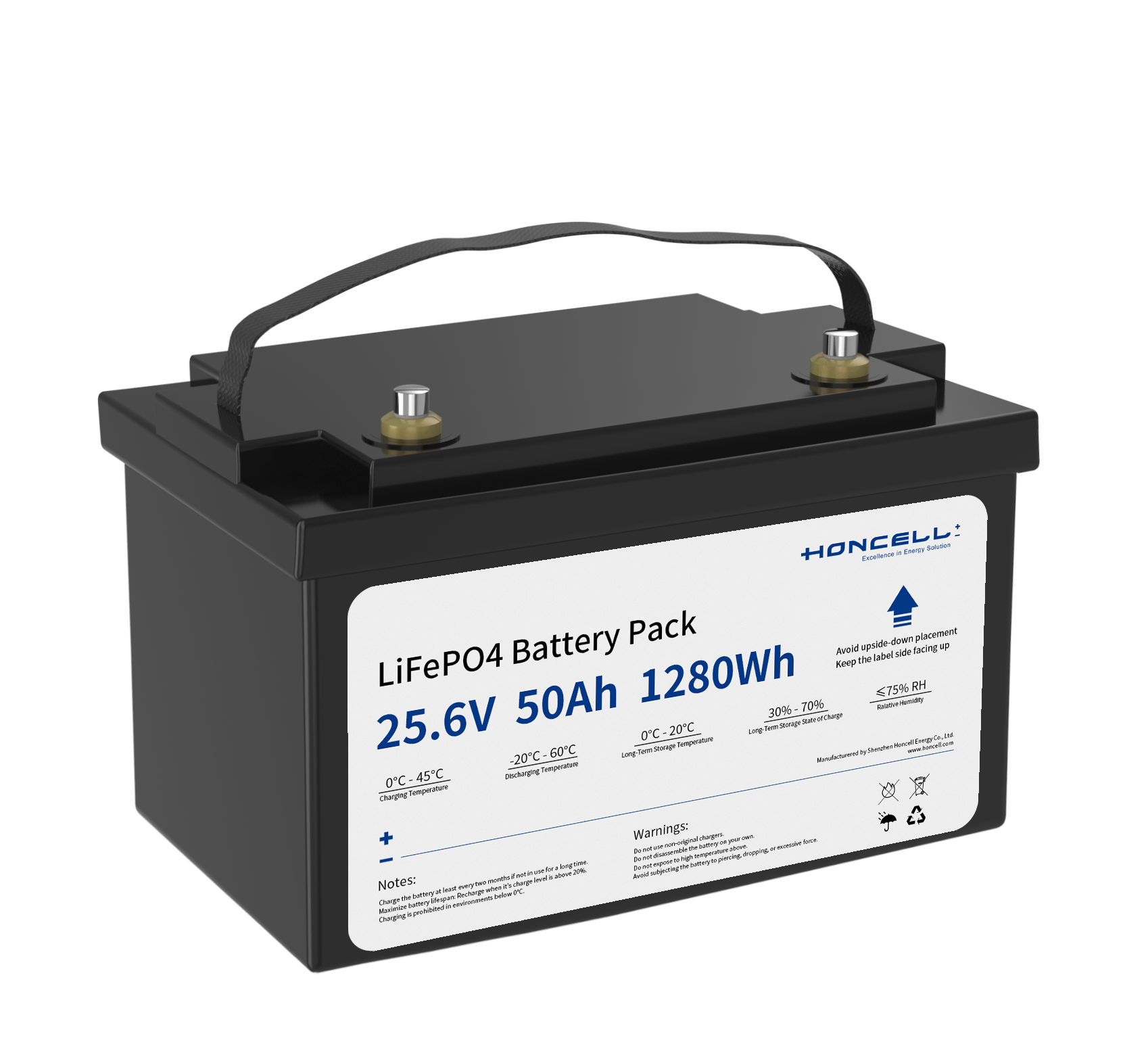

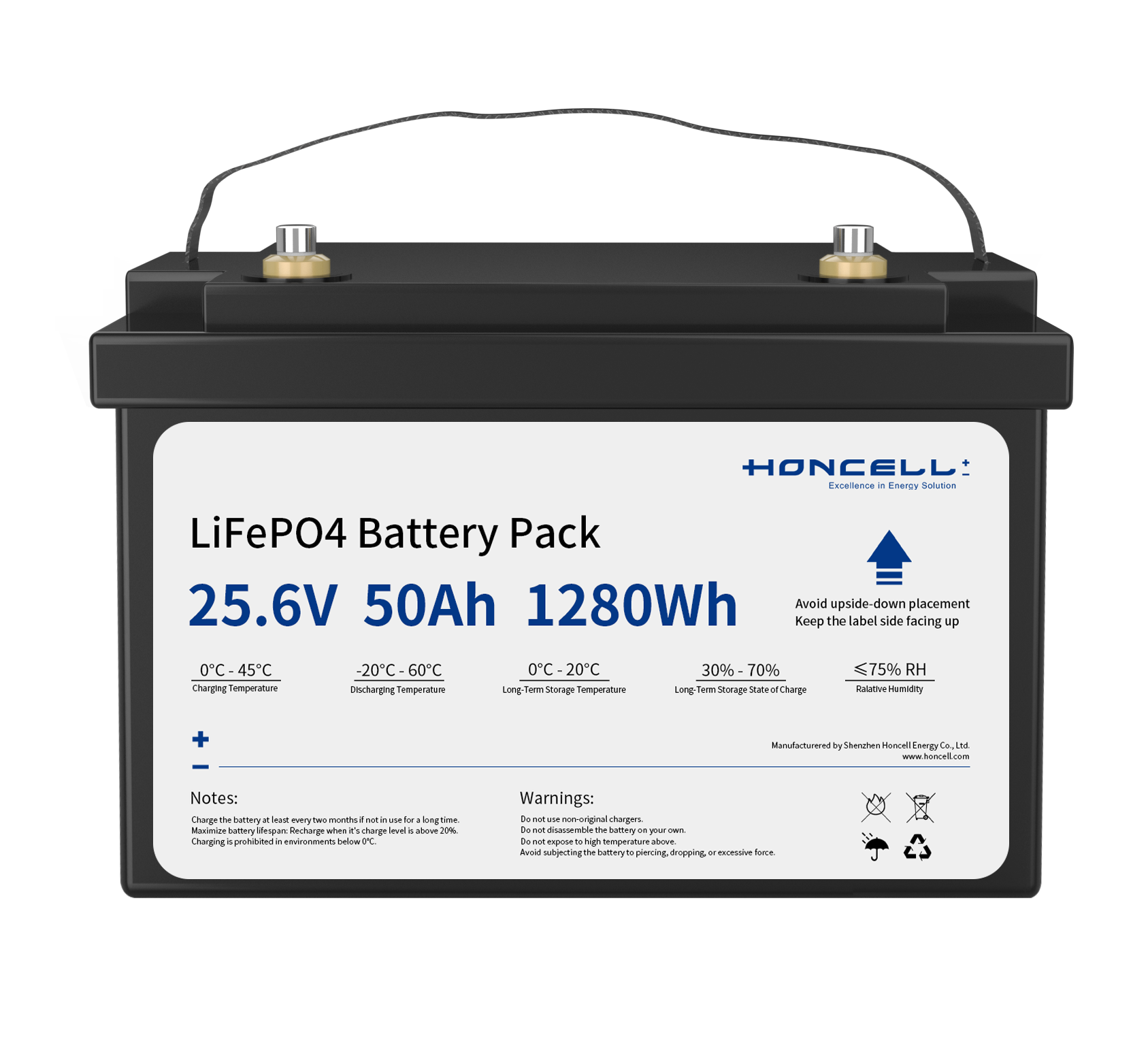

HCF LiFePO4 Battery Packs HCF4014896B-8S1P
-
Parameters
-
Other Products
Parameters
-
Norminal Capacity: 50000mAh -
Rated Voltage: 25.6V -
Dimensions (mm): 218.0(T)*185.0(W)*339.0(L) -
Max. Discharge: 1.0C -
Standard Charge/Discharge: 0.2C -
Max Charge/Discharge: 1.0C -
Peak Discharge: 2.0C -
Charge Temp: 0-45℃ (32-113℉) -
Discharge Temp: -20-60℃ (-4-140℉)
HCF LiFePO4 Battery Packs Applications
Other HCF LiFePO4 Battery Packs
| Model No. | Voltage [V] | Capacity [mAh] | Thickness [mm] | Width [mm] | Length [mm] | Max. Discharge [C] |
|---|---|---|---|---|---|---|
12.8 | 1500 | 22.0 | 75.0 | 72.5 | 1 | |
6.4 | 2000 | 21.0 | 38.0 | 67.5 | 2.0 | |
12.8 | 3300 | 27.5 | 107.0 | 72.0 | 1.2 | |
3.2 | 3600 | 21.0 | 38.0 | 67.5 | 0.5 | |
3.2 | 4000 | 21.0 | 38.0 | 67.5 | 0.5 | |
6.4 | 4000 | 23.0 | 76.0 | 76.0 | 0.5 | |
12.8 | 7800 | 28.0 | 75.0 | 215.0 | 0.2 | |
3.2 | 8000 | 22.0 | 75.0 | 72.0 | 0.5 | |
3.2 | 10000 | 21.0 | 94.5 | 67.5 | 0.2 | |
25.6 | 50000 | 218.0 | 185.0 | 339.0 | 1.0 | |
12.8 | 100000 | 218.0 | 185.0 | 339.0 | 0.5 |
