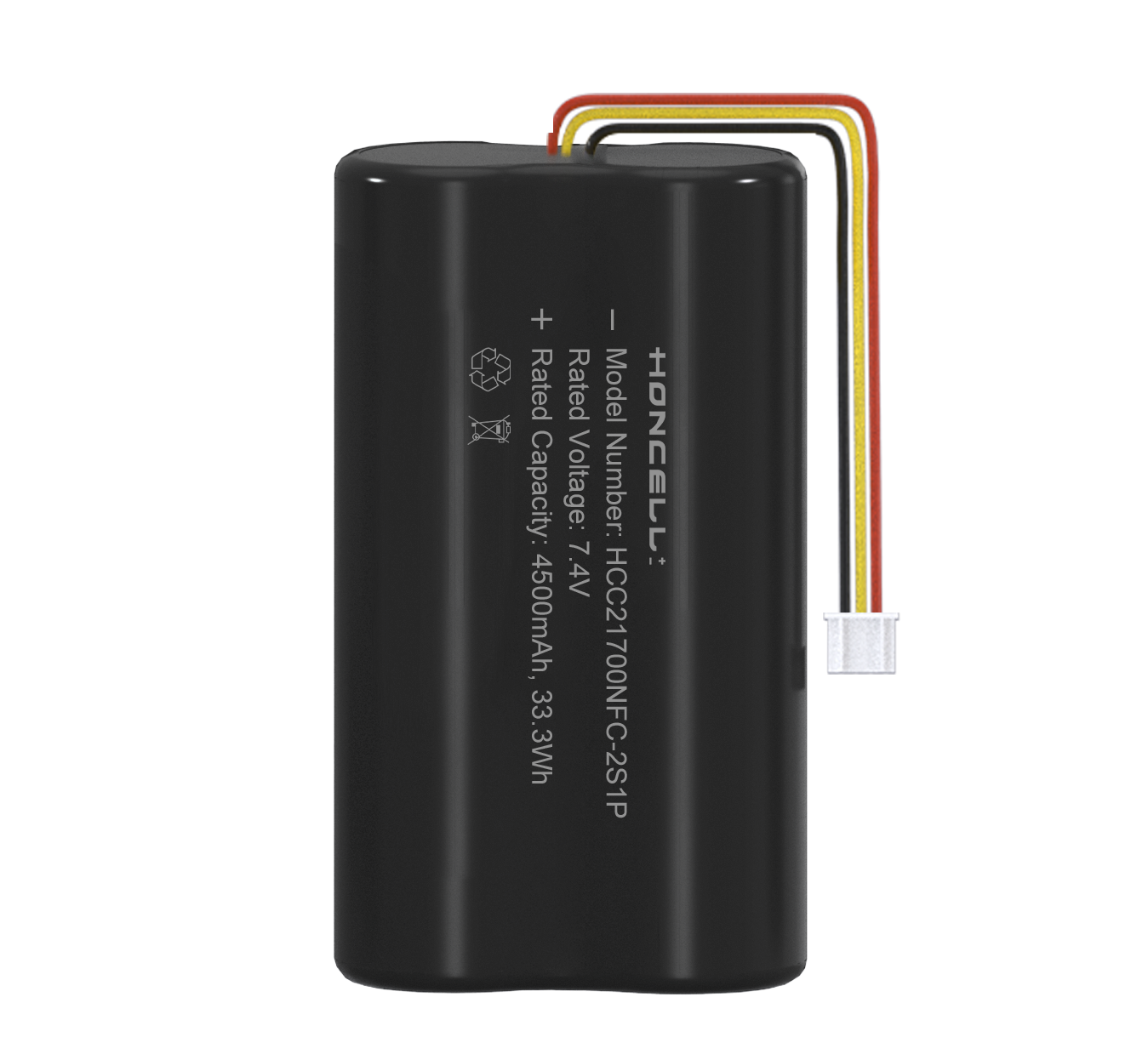

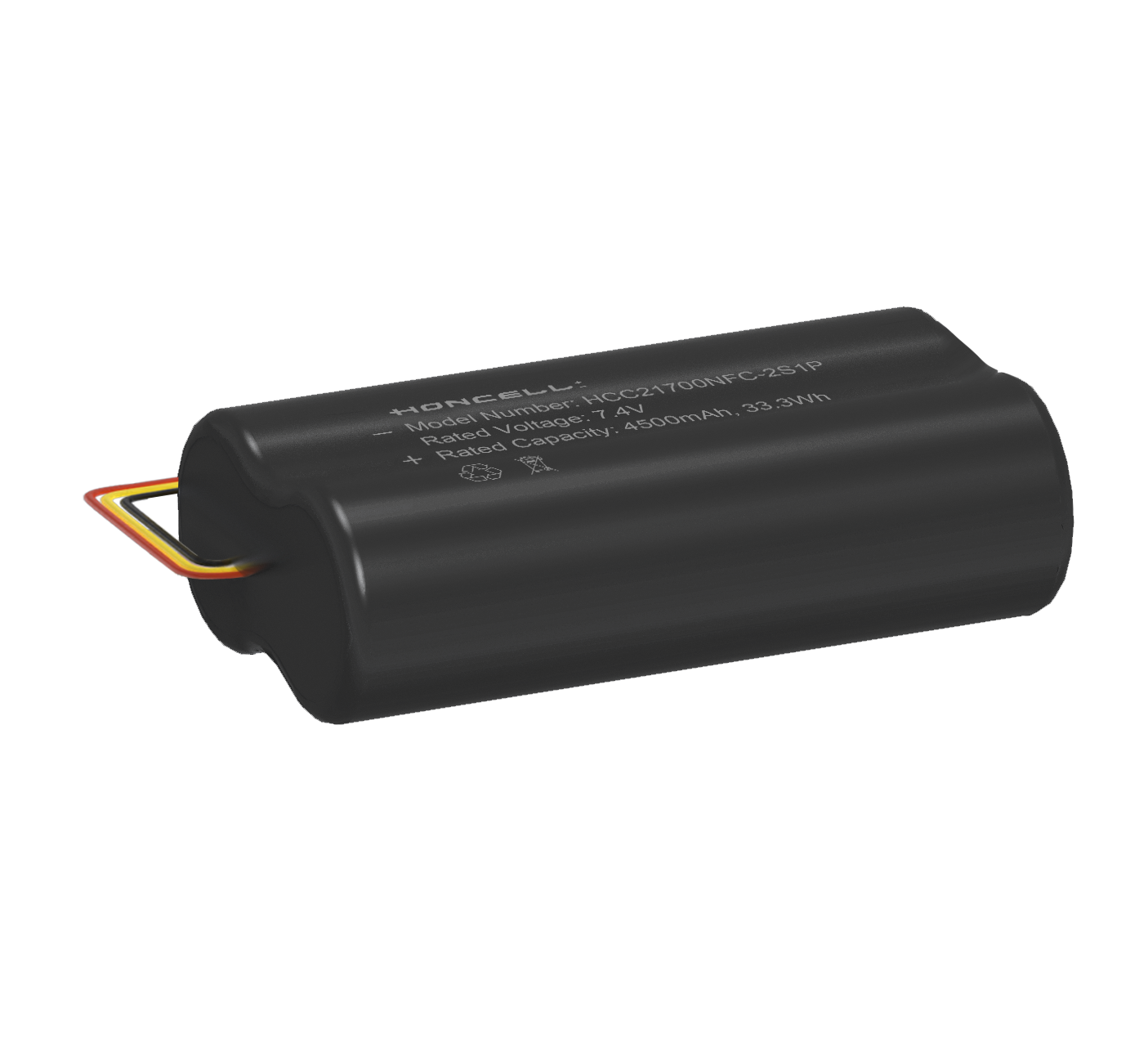

HCC Cylindrical Battery Packs HCC21700NFC-2S1P
-
DATASHEET-HCC21700NFC-2S1P-7.4V 4500mAh-PACK2024（ED-RE-04).pdf
-
DATASHEET-HCC21700-3.7V 4500mAh-CELL2024.pdf
-
Common Connectors Serial.pdf
-
Battery Directive.PDF
-
HCC21700NFC-2S1P-Air Transport Identification Report
-
HCC21700NFC-2S1P-Maritime Transport Identification Report
-
HCC21700NFC-2S1P-Stacking Test Report
-
HCC21700NFC-2S1P-UN38.3 Test Report
-
HCC21700NFC-2S1P-MSDS
-
HCC21700NFC-2S1P-1.2m Drop Test Report
-
HCC21700NFC-2S1P-IEC62133
-
Parameters
-
Other Products
Parameters
-
Norminal Capacity: 4500mAh -
Rated Voltage: 7.4VV -
Dimensions (mm): 26.5(T)*44.5(W)*74.0(L) -
Max. Discharge: 1.5C -
Standard Charge/Discharge: 0.2C -
Max Charge/Discharge: 0.5C/1.5C -
Charge Temp: 10-45℃ (32-113℉) -
Discharge Temp: -20-60℃ (-4-140℉)
HCC Cylindrical Battery Packs Applications
Other HCC Cylindrical Battery Packs
| Model No. | Voltage [V] | Capacity [mAh] | Thickness [mm] | Width [mm] | Length [mm] | Max. Discharge [C] |
|---|---|---|---|---|---|---|
14.8 | 800 | 15.0 | 58.0 | 56.0 | 2.0 | |
3.7 | 1500 | 18.6 | 18.6 | 53.0 | 1.0 | |
7.4 | 1500 | 37.0 | 18.6 | 53.5 | 1.0 | |
7.4 | 2000 | 21 | 38 | 67.5 | 2.0 | |
7.4 | 2500 | 19.0 | 37.5 | 71.0 | 1.0 | |
25.2 | 2500 | 42.0 | 42.0 | 146.0 | 0.5 | |
3.7 | 2600 | 19.5 | 22.5 | 67.0 | 1.0 | |
7.4V | 4500 | 26.5 | 44.5 | 74.0 | 1.5 | |
11.1 | 5000 | 21.0 | 21.0 | 38.0 | 0.5 | |
14.4 | 6000 | 20.0 | 72.0 | 150.0 | 0.33 | |
3.6 | 6400 | 21.0 | 38.0 | 67.5 | 1 | |
3.7 | 10000 | 21.0 | 75.5 | 69.5 | 0.3 | |
3.65 | 25000 | 22.5 | 107.5 | 72.0 | 0.22 | |
3.7 | 26000 | 45.0 | 69.5 | 99.0 | 1.0 |
