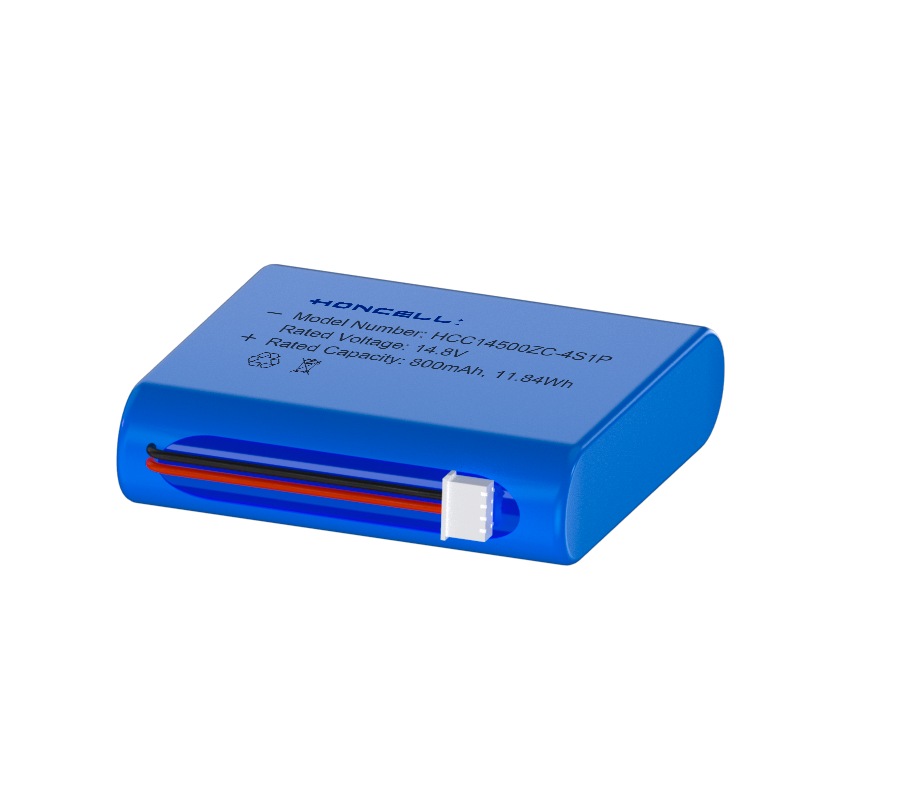

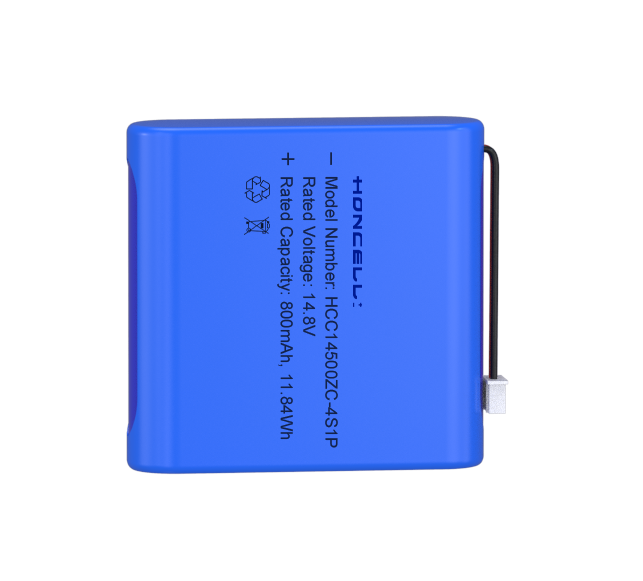

HCC Cylindrical Battery Packs HCC14500ZC-4S1P

Maximum Continuous Discharge Rate=3C：Engineered for high-power applications, these LiFePO4 battery cells boast a continuous discharge rate of 3C. Available in sizes such as 18650, 26650, and 32701, they excel in power tools, electric scooters, smart vacu

Parameters
Common Applications
Other Products
Handling Precautions & Guidelines

Parameters

Norminal Capacity: 800mAh
Rated Voltage: 14.8V
Dimensions (mm): 15.0(T)*58.0(W)*56.0(L)
Max. Discharge: 2.0C
Standard Charge/Discharge: 0.2C
Max Charge/Discharge: 1C/2C
Peak Discharge: 3C
Charge Temp: 0-45℃ (32-113℉)
Discharge Temp: -20-60℃ (-4-140℉)

HCC Cylindrical Battery Packs Applications

Other HCC Cylindrical Battery Packs

Model No.	Voltage [V]	Capacity [mAh]	Thickness [mm]	Width [mm]	Length [mm]	Max. Discharge [C]
HCC14500ZC-4S1P	14.8	800	15.0	58.0	56.0	2.0
HCC18500NZC	3.7	1500	18.6	18.6	53.0	1.0
HCC18500NW-2S1P	7.4	1500	37.0	18.6	53.5	1.0
HCC18650FC-2S1P	7.4	2000	21	38	67.5	2.0
HCC18650NW-2S1P	7.4	2500	19.0	37.5	71.0	1.0
HCC18650ZC-7S1P	25.2	2500	42.0	42.0	146.0	0.5
HCC18650FC	3.7	2600	19.5	22.5	67.0	1.0
HCC21700NFC-2S1P	7.4V	4500	26.5	44.5	74.0	1.5
HCC26650NZC-3S1P	11.1	5000	21.0	21.0	38.0	0.5
HCC18650NZC-4S2P	14.4	6000	20.0	72.0	150.0	0.33
HCC18650PZC-1S2P	3.6	6400	21.0	38.0	67.5	1
HCC18650W-1S4P	3.7	10000	21.0	75.5	69.5	0.3
HCC21700PNZC-1S5P	3.65	25000	22.5	107.5	72.0	0.22
HCC18650FC-1S10P	3.7	26000	45.0	69.5	99.0	1.0

Handling Precautions & Guidelines

What is the Minimum Order Quantity (MOQ) for batteries?

As a professional manufacturer, Honcell requires a MOQ of 3,000 pieces. This is because our device startup process necessitates a certain raw material quantity, and producing fewer than 3,000 per batch may not ensure sufficient materials to properly fill the devices or operate the machinery effectively.
However, if the requested battery model is in stock, the MOQ can be more flexible. We encourage you to contact us to check availability and see if we have a suitable model for your needs.
Can the battery be customized?

Yes, we provide tailored solutions to meet our customers' precise needs. Our customization options include size, capacity, voltage, maximum discharge rate, and other parameters. Contact us to explore how we can create a battery solution that fits your requirements perfectly.
Are there any special storage requirements for the battery?

Li-ion batteries should be stored in a cool, dry place, shielded from direct sunlight and heat sources. Following our storage guidelines is advisable to ensure optimal battery performance and safety.
What is the charging time of the battery?

Generally, Honcell's batteries can be fully charged in 0.5 to 3 hours, depending on the charging current and the capacity of the battery.
