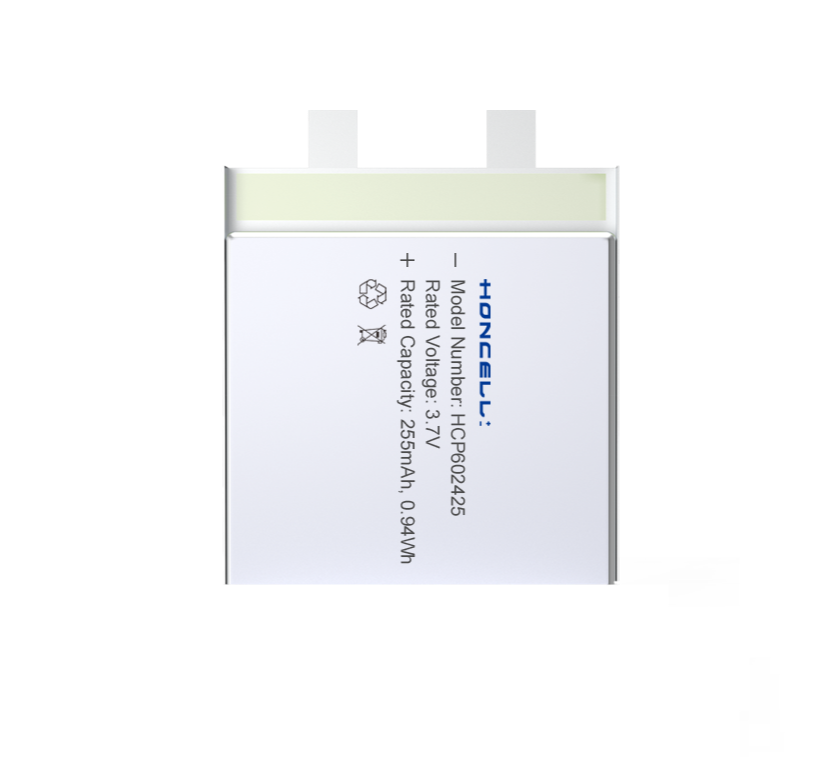

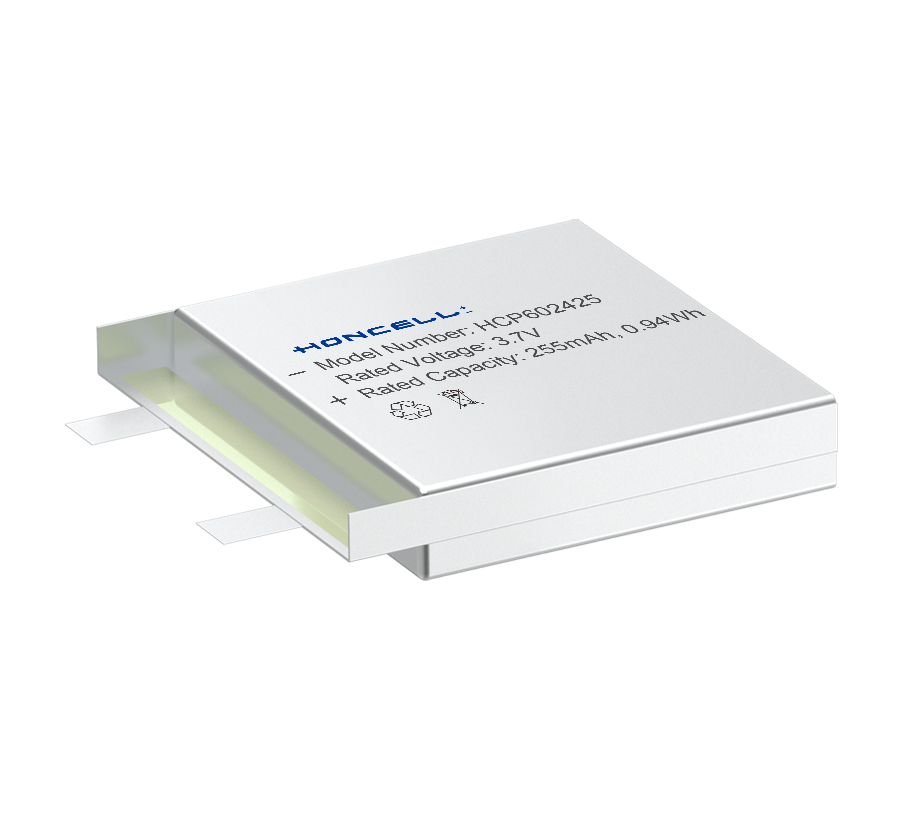

HCP Li-Polymer Cell HCP602425

Compact and lightweight small size bartteries. Designed for micro devices, wearable tech, and IoT sensors. Ideal for portable and space constrained applications.

  • Parameters
  • Common Applications
  • Other Products
  • Handling Precautions & Guidelines

Parameters

  • Norminal Capacity: 255mAh
  • Rated Voltage: 3.7V
  • Weight: Appr. 5.1g
  • Dimensions (mm): 6.0(T)*24.5(W)*25.5(L)
  • Impedance: Max: 150mΩ
  • Standard Charge/Discharge: 0.2C
  • Max Charge/Discharge: 1C
  • Peak Discharge: 2C
  • Charge Temp: 0-45℃ (32-113℉)
  • Discharge Temp: -20-60℃ (-4-140℉)

HCP Li-Polymer Cell Applications

Other HCP Li-Polymer Cell

Model No. Voltage [V]Capacity [mAh]Thickness [mm]Width [mm]Length [mm]Impedance [≤mΩ]Weight [g]
HCP250811
3.7
5
2.5
8.0
11.0
2400
0.25
HCP250910
3.7
8
2.5
9.0
10.0
2000
0.35
HCP200815
3.7
9
2.0
8.0
15.0
1800
0.4
HCP300910
3.7
12
3
9.5
10.5
2000
0.3
HCP300812
3.7
13
3.0
8.5
12.5
1200
0.6
HCP301012
3.7
13
3
10.5
12.5
1200
0.78
HCP351011
3.7
15
3.5
10.5
11.5
1200
0.5
HCP181520
3.7
20
1.8
15
20
1050
0.8
HCP401012
3.7
20
4
10.5
12.5
1200
1
HCP301114
3.7
25
3
11.5
14.5
800
1
HCP381018
3.7
30
3.8
11.0
18.5
800
0.8
HCP401215
3.7
35
4.0
12.5
15.5
600
1.0
HCP351215
3.7
40
3.5
12.5
15.5
600
1.4
HCP391415
3.7
45
3.9
14.5
15.5
450
1.7
HCP202025
3.7
50
2.0
20.5
25.5
550
1.5
HCP521114
3.7
53
5.2
11.0
14.0
650
1.2
HCP501218
3.7
60
5.0
12.5
17.5
680
1.4
HCP301520
3.7
65
3.0
15.5
20.5
540
1.5
HCP251235
3.7
70
2.5
12.5
35.3
500
1.8
HCP451418
3.7
75
4.5
14.0
18.0
480
1.8
HCP501220
3.7
80
5.0
12.5
20.5
440
2.5
HCP451223
3.7
85
4.5
12.5
23.5
400
2.0
HCP501223
3.7
90
5
12.5
23.5
400
2.9
HCP501130
3.7
95
5.0
11.0
30.5
250
2.1
HCP451326
3.7
100
4.5
13.5
26.5
250
2.2
HCP261635
3.7
105
2.6
16.0
35.0
180
2.3
HCP481619
3.7
110
4.8
16.5
19.5
220
2.5
HCP351725
3.7
115
3.7
17.5
25.5
220
2.5
HCP481624
3.7
120
4.8
16.5
24.5
200
2.6
HCP422023
3.7
125
4.2
20.5
23.5
200
2.8
HCP451226
3.7
130
4.5
12.0
26.0
200
2.8
HCP471230
3.7
138
4.7
12.5
30.5
200
2.95
HCP402025
3.7
140
4
20.5
25
230
3.5
HCP501232
3.7
145
5.0
12.5
32.5
220
3.5
HCP551035
3.7
155
5.5
10.0
35.0
210
3.5
HCP601230
3.7
160
6.0
12.5
30.5
230
3.3
HCP412025
3.7
165
4.1
20.5
25.5
200
3.5
HCP421529
3.7
170
4.25
15.5
29.0
200
3.5
HCP521528
3.7
175
5.2
15.5
28.5
200
3.5
HCP502025
3.7
180
5
20.5
25.5
210
5.2
HCP481240
3.7
185
4.8
12.5
40.0
200
3.6
HCP751717
3.7
190
7.5
17.5
17.5
200
3.8
HCP451730
3.7
195
4.5
17.0
30.0
200
3.9
HCP272332
3.7
200
2.7
23.5
32.5
180
3.8
HCP351743
3.7
205
3.5
17.5
43.5
190
4.4
HCP452322
3.7
210
4.5
23.5
22.5
190
4.2
HCP452030
3.7
215
4.5
20.5
30.5
200
4.2
HCP402525
3.7
220
4
25
25
160
4.5
HCP702024
3.7
225
7.0
20.5
24.0
200
4.3
HCP501730
3.7
230
5.0
17.5
30.5
170
4.5
HCP412523
3.7
235
4.1
25.5
23.5
160
4.4
HCP402528
3.7
240
4
25.5
28.5
300
5.8
HCP352533
3.5
245
3.5
25.5
33.5
150
4.6
HCP502030
3.7
250
5.0
20.0
30.5
120
5.0
HCP602425
3.7
255
6.0
24.5
25.5
150
5.1
HCP522028
3.7
260
5.2
20.5
28.5
160
5.1
HCP382035
3.7
265
3.8
20.5
35.5
150
5.2
HCP382730
3.7
270
3.8
27.5
30.5
130
5.2
HCP601434
3.7
275
6.0
14.5
34.5
150
5.1
HCP801528
3.7
280
8.0
15.5
28.5
150
5.5
HCP402035
3.7
285
4.0
20.5
35.5
150
5.2
HCP501828
3.8
290
5.0
18.5
28.5
140
5.6
HCP552028
3.7
295
5.5
20.5
28.0
140
5.6
HCP451743
3.7
300
4.5
17.0
43.0
220
6.0
HCP502228
3.7
305
5.0
22.5
28.5
140
5.8
HCP302938
3.7
310
3
29.5
38.5
120
6.8
HCP702025
3.7
315
7.0
20.5
25.5
140
5.8
HCP802025
3.7
320
8.0
20.5
25.5
140
6.3
HCP701435
3.7
325
7.0
14.5
35.5
140
5.8
HCP552133
3.7
330
5.5
21.5
33.5
130
6.3
HCP502035
3.7
335
5.0
20.5
35.5
130
6.0
HCP771730
3.7
340
7.7
17.5
30.5
130
6.5
HCP801437
3.7
345
8.0
14.5
37.5
130
6.8
HCP482533
3.7
350
4.8
25.5
33.5
120
8.2
HCP552330
3.7
355
5.5
23.5
30.5
120
6.8
HCP322545
3.7
360
3.2
25.5
45.5
130
6.3
HCP502530
3.7
365
5.0
25.5
30.5
130
6.2
HCP742224
3.7
370
7.4
22.0
24.0
120
6.8
HCP502233
3.7
375
5.0
22.5
33.5
130
6.8
HCP652427
3.7
380
6.5
24.5
27.5
120
7.1
HCP551640
3.7
385
5.5
16.5
40.5
130
6.9
HCP822030
3.7
390
8.2
20.5
30.8
130
7.8
HCP502534
3.7
395
5.0
25.5
34.5
130
7.5
HCP801831
3.7
400
8.0
18.5
31.0
110
7.5
HCP802026
3.7
405
8.0
20.5
26.5
120
7.0
HCP432738
3.7
410
4.3
27.5
38.5
120
7.3
HCP403040
3.7
415
4.0
30.5
40.5
120
8.3
HCP551358
3.7
420
5.5
13.5
58.5
80
8.2
HCP702730
3.7
425
7.0
27.5
30.5
120
9.4
HCP582728
3.7
430
5.8
27.0
28.0
120
7.4
HCP552535
3.7
435
5.5
25.5
35.5
110
7.9
HCP922224
3.7
440
9.2
22.0
24.0
110
7.6
HCP402447
3.7
445
4.0
24.5
47.5
130
8.5
HCP602530
3.7
450
6.0
25.5
30.5
110
8.5
HCP622530
3.7
455
6.2
25.5
30.5
110
8.6
HCP702338
3.7
460
7.0
23.5
38.5
100
11.4
HCP522040
3.7
465
5.0
20.5
40.5
100
7.7
HCP801740
3.7
470
8.0
17.5
40.5
110
9.0
HCP402055
3.7
475
4.0
20.5
55.5
100
8.2
HCP462540
3.7
480
4.6
25.5
40.5
100
8.5
HCP563030
3.7
485
5.6
30.5
30.5
100
9.3
HCP702032
3.7
490
7.0
20.5
32.5
100
8.4
HCP353048
3.7
495
3.5
30.5
48.5
100
9.3
HCP602535
3.7
500
6
25.5
34.5
120
10.5
HCP682235
3.8
550
6.8
22.0
35.0
140
10.5
HCP452446
3.7
580
4.5
24.5
46.5
100
10.6
HCP702339
3.7
600
7.0
23.5
39.5
120
13.0
HCP602248
3.7
630
6.0
22.5
48.5
80
13.0
HCP503040
3.7
650
5
30.5
40.5
80
12
HCP902037
3.7
700
9.0
20.5
37.5
120
13.0
HCP852044
3.7
720
8.5
20.5
44.5
80
12.5
HCP503240
3.7
735
5
32.4
40.5
180
13.1
HCP433438
3.8
750
4.3
34.0
38.0
80
10.5
HCP803030
3.7
770
8.0
30.5
30.5
80
14.5
HCP304552
3.7
800
3.0
45.0
52.0
80
12.0
HCP752050
3.7
850
7.5
20.5
50.5
80
12.4
HCP383562
3.7
900
3.8
35.5
62.5
80
16.5
HCP102040
3.8
950
10.0
20.0
40.0
75
13.0
HCP523450
3.7
1000
5.2
34.0
50.0
60
18.0
HCP503848
3.7
1050
5.0
38.0
48.0
80
17.5
HCP322988
3.85
1100
3.2
29.5
88.5
80
15.5
HCP663539
3.7
1100
6.6
35.5
39.5
65
22
HCP703440
3.7
1150
7.0
34.5
40.5
80
18.5
HCP653450
3.7
1200
6.5
34.5
50.5
80
20.5
HCP515245
3.7
1250
5.1
52
45
80
21.5
HCP703448
3.7
1300
7.0
34.0
48.0
80
22.0
HCP256371
3.7
1350
25
63.5
71.5
80
23
HCP633750
3.7
1400
6.3
37.5
50.5
80
24
HCP604055
3.7
1450
6.0
40.0
55.0
80
25.0
HCP504058
3.7
1500
5.0
40.0
58.0
80
22.0
HCP564551
3.7
1550
5.6
45.0
51.0
80
24.5
HCP404074
3.7
1600
4.0
40.5
74.5
70
24.0
HCP405055
3.7
1610
4.3
50.5
55.5
70
24.5
HCP903445
3.7
1700
9
34.5
45.5
80
34
HCP623664
3.7
1750
6.2
36.0
64.0
50
26.0
HCP813846
3.7
1750
8.1
38.5
46.5
45
28.0
HCP804055
3.7
1800
8.0
40.0
55.0
80
33.5
HCP634256
3.7
1850
6.3
42.5
56.0
80
28.5
HCP103450
3.7
1900
10.0
34.0
50.0
55
34.0
HCP753856
3.7
1950
7.5
38.5
56.5
80
32.0
HCP113047
3.7
2000
11
30.5
47.5
70
32
HCP654560
3.7
2050
6.5
45.0
60.0
80
33.5
HCP405085
3.7
2100
4.0
50.0
85.0
80
32.0
HCP406075
3.7
2150
4.0
60.0
75.0
80
34.0
HCP534564
3.7
2200
5.3
45.5
64.5
80
32.5
HCP643381
3.7
2200
6.4
33.5
81.5
45
35
HCP704552
3.7
2250
7.0
45.0
52.0
80
32.0
HCP605064
3.7
2300
6.0
50.0
64.0
75
36.5
HCP114043
3.7
2350
10.8
40.0
43.0
75
35.5
HCP703875
3.7
2400
7.0
38.0
75.0
75
37.5
HCP346378
3.7
2450
3.4
63.0
78.0
75
32.5
HCP306887
3.7
2500
3.0
68.5
87.5
80
35.5
HCP584877
3.7
2550
5.8
48.0
77.0
75
40.5
HCP853565
3.7
2600
8.5
35.0
65.0
75
36.5
HCP113453
3.7
2620
11.0
34.0
53.0
80
39.5
HCP852990
3.7
2650
8.5
29.0
90.0
75
42.0
HCP744560
3.7
2700
7.4
45.5
60.5
60
40.5
HCP123450
3.7
2750
12.0
34.0
50.0
75
39.0
HCP703986
3.7
2800
7.0
39.5
86.5
70
44.5
HCP845251
3.7
2850
8.4
52.5
51.5
60
45.5
HCP5735107
3.7
2900
5.7
35.5
107.0
60
39.0
HCP505280
3.7
2950
5.0
52.0
80.0
75
40.0
HCP104060
3.7
3000
10.0
40.0
60.0
60
45.0
HCP645464
3.7
3050
6.4
54.0
64.0
75
42.0
HCP124052
3.7
3100
12.0
40.5
52.5
60
48.5
HCP507075
3.7
3150
5.0
70.0
75.0
75
47.0
HCP845160
3.7
3200
8.4
51.5
60.5
60
49.5
HCP745060
3.7
3250
7.4
50.5
60.5
60
43.0
HCP436185
3.7
3300
4.3
61.5
85.5
60
42.5
HCP595369
3.8
3350
5.9
53.0
69.0
60
41.0
HCP124443
3.8
3400
12.5
44.0
43.5
60
45.5
HCP705076
3.7
3450
7.0
50.5
76.5
60
50.5
HCP455885
3.8
3500
4.5
58.5
85.5
80
42.5
HCP756060
3.7
3550
7.5
60.5
60.5
60
52.5
HCPX905656
3.7
3600
9.0
56.0
56.5
60
54.0
HCP506378
3.7
3650
5.0
63.0
78.0
60
48.5
HCP855160
3.7
3700
8.5
51.0
60.0
60
49.5
HCP904860
3.7
3750
9.0
48.0
60.0
60
49.0
HCP124450
3.7
3800
12.5
44.5
50.0
60
55.5
HCP506290
3.7
3850
5.0
62.5
90.5
60
55.0
HCP745080
3.7
3900
7.4
50.5
80.0
60
57.0
HCP714486
3.7
3950
7.1
44.5
86.0
60
52.0
HCP6830158
3.7
4000
6.8
30.5
158.5
60
65
HCP113969
3.7
4050
10.8
39.5
69.0
60
56.0
HCP605980
3.7
4100
6.0
59.0
80.0
60
54.0
HCP124065
3.7
4150
11.8
40.0
65.0
60
58.5
HCP855085
3.7
4200
8.5
50.5
85.5
80
74.0
HCP516391
3.7
4250
5.1
63.5
91.5
60
56.5
HCP114762
3.7
4300
11.0
47.0
62.0
60
61.0
HCP746066
3.8
4350
7.4
60.0
66.0
60
56.0
HCP805181
3.7
4400
8.0
51.5
81.5
60
67.0
HCP5552102
3.7
4500
5.5
52.5
102.5
50
59.2
HCP875264
3.8
4550
8.7
52.5
64.5
60
57.0
HCP645978
3.8
4600
6.4
59.5
78.5
60
59
HCP114564
3.8
4650
11.0
45.0
64.0
60
60.5
HCP586087
3.7
4700
5.8
60.5
87.5
60
58.5
HCP605898
3.7
4750
6.0
58.0
98.0
60
64.8
HCP735977
3.7
4800
7.3
59.5
77.5
60
74.0
HCP846370
3.7
4850
8.4
63.0
70.0
60
70.5
HCP105267
3.7
4900
10.0
52.5
67.5
60
67.5
HCP3573125
3.8
4950
3.5
73.5
125.0
60
61.0
HCP905283
3.7
5000
9.0
52.5
83.5
60
73.5
HCP5149133
3.7
5100
5.1
49.5
133.0
60
64.0
HCP3210098
3.8
5150
3.2
100.0
98.0
60
59.5
HCP953998
3.7
5200
9.5
39.5
98.0
80
70.5
HCP705681
3.8
5250
7.0
56.0
81.0
60
60.5
HCP8045131
3.7
5300
8.0
45.5
131.5
60
91.0
HCP124575
3.8
5350
12.0
45.0
75.0
60
77.0
HCP113597
3.7
5400
10.8
35.0
97.5
60
70.0
HCP3963135
3.8
5450
3.9
63.0
135.0
60
63.0
HCP757477
3.7
5500
7.5
74.0
77.0
60
81.0
HCP775598
3.7
5550
7.7
55.0
98.0
60
78.8
HCP5757109
3.7
5600
5.7
57.5
109.5
60
68.5
HCP965974
3.7
5650
9.6
59.5
74.5
60
80.5
HCP745881
3.8
5700
7.4
58.0
81.0
60
66.0
HCP905085
3.8
5750
9.0
50.5
85.5
40
90.0
HCP4664143
3.7
5800
4.6
64.5
143.5
80
80.5
HCP5165112
3.7
5850
5.1
65.0
112.0
60
70.5
HCP956170
3.7
5900
9.5
61.5
70.5
60
80.5
HCP657192
3.8
5950
6.5
71.0
92.0
60
80.5
HCP866090
3.7
6000
8.6
60.5
90.5
60
90.0
HCP4273125
3.8
6050
4.2
73.5
125.0
60
73.5
HCP4595105
3.7
6100
4.5
95.0
105.0
50
85.5
HCP105083
3.7
6150
10.0
50.0
83.0
60
78.8
HCP116168
3.7
6200
10.9
61.0
67.5
60
85.5
HCP5774108
3.7
6250
5.75
74.0
108.0
60
86.5
HCP4672133
3.7
6300
4.6
72.0
133.0
60
83.5
HCP966870
3.7
6350
9.6
68.0
70.5
60
87.4
HCP1042100
3.7
6400
10.0
42.0
100.5
60
76.0
HCP755598
3.8
6450
7.5
55.0
98.0
60
76.8
HCP756195
3.7
6500
7.5
61.0
95.0
60
82.6
HCP7859103
3.7
6550
7.8
59.0
103.0
60
90.0
HCPX976077
3.7
6600
9.75
60.0
76.5
60
85.0
HCP985976
3.7
6650
9.8
59.5
76.5
60
84.5
HCP845098
3.8
6700
8.4
50.0
98.0
60
78.5
HCP116472
3.7
6750
10.5
64.0
72.0
60
80.5
HCP835895
3.7
6800
8.3
58.0
95.0
50
90.0
HCP8648128
3.7
6850
8.6
48.0
128.0
60
100.5
HCP985798
3.7
6900
9.8
57.5
98.0
60
105.0
HCP776598
3.7
6950
7.7
65.0
98.0
60
93.5
HCP4670140
3.7
7000
4.6
70
140
60
85.5
HCP1138114
3.8
7050
11.0
38.0
114.0
55
90.5
HCP6666100
3.8
7150
6.6
66.0
100.0
55
82.5
HCP1045120
3.7
7200
10.0
45.0
120.0
55
102.5
HCP668196
3.7
7250
6.6
81.0
96.0
55
97.5
HCP786590
3.8
7300
7.8
65.0
90.0
55
88.0
HCP6166116
3.8
7350
6.1
66.0
116.0
55
90.5
HCP977679
3.7
7400
9.7
76.0
79.5
55
111.5
HCP7054150
3.7
7450
7.0
54.0
150.0
55
108.0
HCP5662158
3.7
7500
5.6
62.0
158.0
50
110.0
HCP5869147
3.7
7600
5.8
69.5
147.5
55
113.0
HCP678996
3.7
7700
6.7
89.0
96.0
30
133.0
HCP8062101
3.8
7750
8.0
62.0
101.0
55
95.5
HCP967775
3.7
7800
9.6
77.0
75.5
55
106.5
HCP6255165
3.7
7850
6.2
55.0
165.0
55
107.0
HCP43104138
3.7
7900
4.3
104.0
138.0
55
117.5
HCP837585
3.7
7950
8.3
75.0
85.0
55
100.0
HCP5578130
3.7
8000
5.5
78.0
130.0
40
110.0
HCP7765108
3.85
8050
7.7
65.0
108.0
55
102.5
HCP8158111
3.7
8100
8.1
58.0
111.0
55
99.5
HCP886392
3.8
8150
8.8
63.0
92.0
55
97.0
HCP7545152
3.7
8200
7.5
45.0
152.0
60
122.5
HCP866395
3.8
8250
8.6
63.0
95.0
55
97.5
HCP875899
3.8
8300
8.7
58.0
99.0
55
94.8
HCP8568102
3.7
8400
8.5
68.5
102.0
55
112.5
HCP709598
3.7
8450
7.0
95.0
98.0
55
123.5
HCP9850113
3.7
8500
9.8
50.0
113.5
55
105.5
HCP126090
3.7
8650
12.0
60.0
90.0
50
129.5
HCP7090100
3.7
8700
7.0
90.0
100.0
55
119.7
HCP859089
3.7
8800
8.5
90.0
89.0
55
130.0
HCP1059103
3.85
8850
10.5
59.0
103.0
55
121.5
HCP8266115
3.7
8900
8.2
66.0
115.0
55
118.5
HCP9262113
3.7
8950
9.2
62.0
113.0
55
122.5
HCP7972121
3.7
9000
7.9
72.5
121.5
30
139
HCP9742135
3.8
9100
9.7
42.0
135.0
55
104.5
HCP8666100
3.8
9150
8.6
66.0
100.0
55
107.5
HCP7883105
3.8
9200
7.8
83.5
105.5
50
130.5
HCP1255098
3.7
9250
12.5
50.0
98.0
50
117.0
HCP10559103
3.7
9300
10.5
59.0
103.0
60
121.5
HCP709090
3.8
9350
7.0
90.0
90.0
50
107.8
HCP5880128
3.7
9400
5.8
80.0
127.5
50
112.5
HCP8958156
3.7
9500
8.9
58.0
156.0
50
153.0
HCP9964102
3.8
9550
9.9
64.0
102.0
50
123.0
HCP8090100
3.7
9600
8.0
90.0
100.0
50
136.8
HCP9858100
3.8
9800
9.8
58.0
100.5
50
108.5
HCP9265115
3.7
9950
9.2
65.0
115.0
50
130.0
HCP8158145
3.7
10000
8.1
58.0
145.0
50
130.0
HCP6091115
3.8
10500
6.0
91.0
115.0
50
120.0
HCP9055160
3.7
11000
8.9
55.0
160.0
60
141.0
HCP7080138
3.7
11600
7.0
80.0
138.0
50
146.8
HCPX7580150
3.7
12000
7.5
80.0
150.0
60
181.0
HCP6586201
3.7
13000
6.5
86.0
201.0
20
248.0
HCP1255160
3.7
14000
12.0
55.0
160.0
50
200.5
HCPX1161150
3.7
15000
11.5
61.0
150.0
60
210.5

Handling Precautions & Guidelines

  • Can the battery be customized?

    Yes, we provide tailored solutions to meet our customers' precise needs. Our customization options include size, capacity, voltage, maximum discharge rate, and other parameters. Contact us to explore how we can create a battery solution that fits your requirements perfectly.

  • Are there any special storage requirements for the battery?

    Li-ion batteries should be stored in a cool, dry place, shielded from direct sunlight and heat sources. Following our storage guidelines is advisable to ensure optimal battery performance and safety.

  • What is the charging time of the battery?

    Generally, Honcell's batteries can be fully charged in 0.5 to 3 hours, depending on the charging current and the capacity of the battery.

Learn More

Explore the power of battery with us

Inquiry Now
Latest News
Contact Us

Let Us Know Your Needs And Get A Quick Reply.

I have read and agree 《Privacy Policy》

Submit

Explore the power of battery with us

Inquiry Now
Contact Us

Let Us Know Your Needs And Get A Quick Reply.

I have read and agree 《Privacy Policy》

Submit
