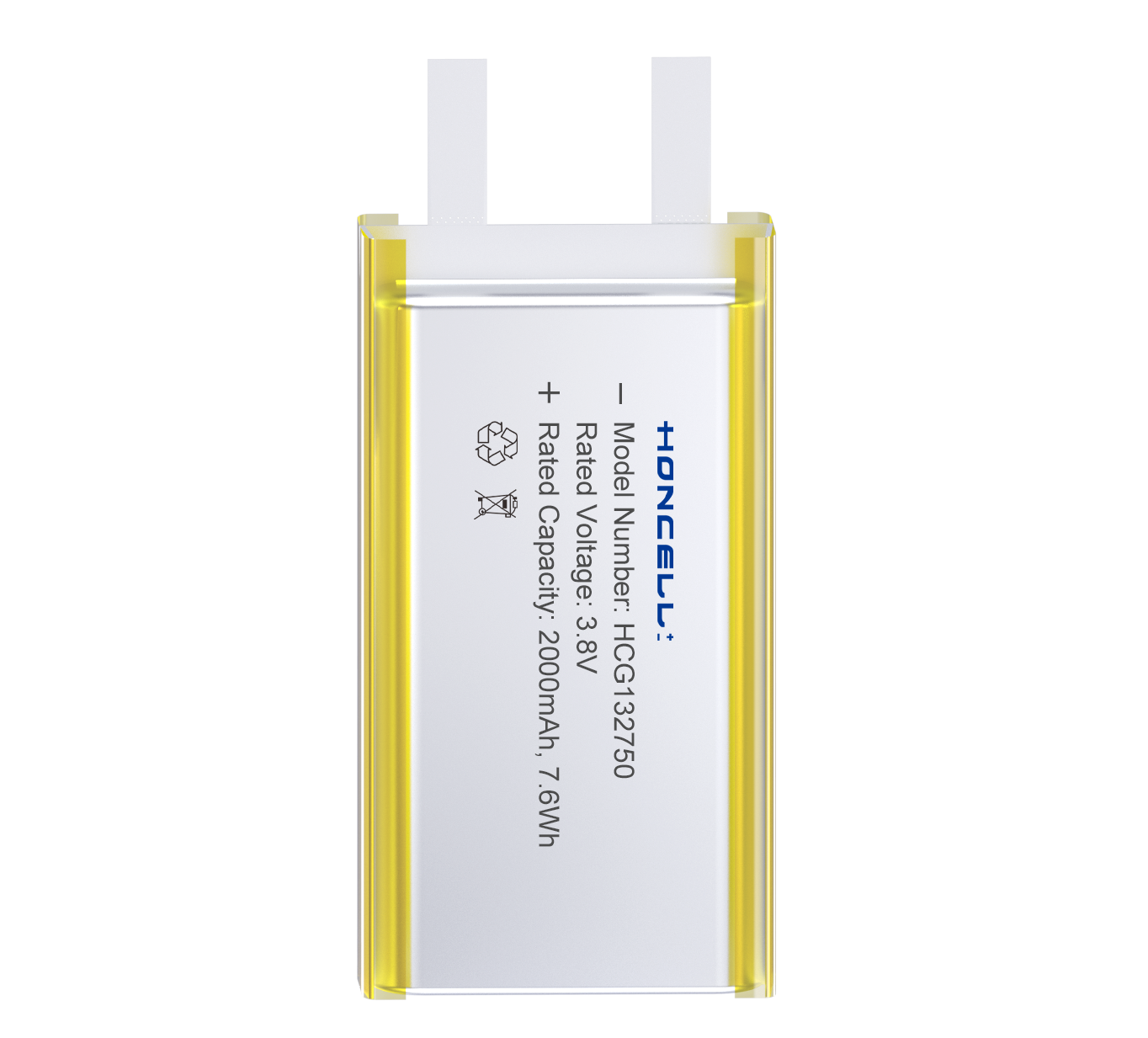

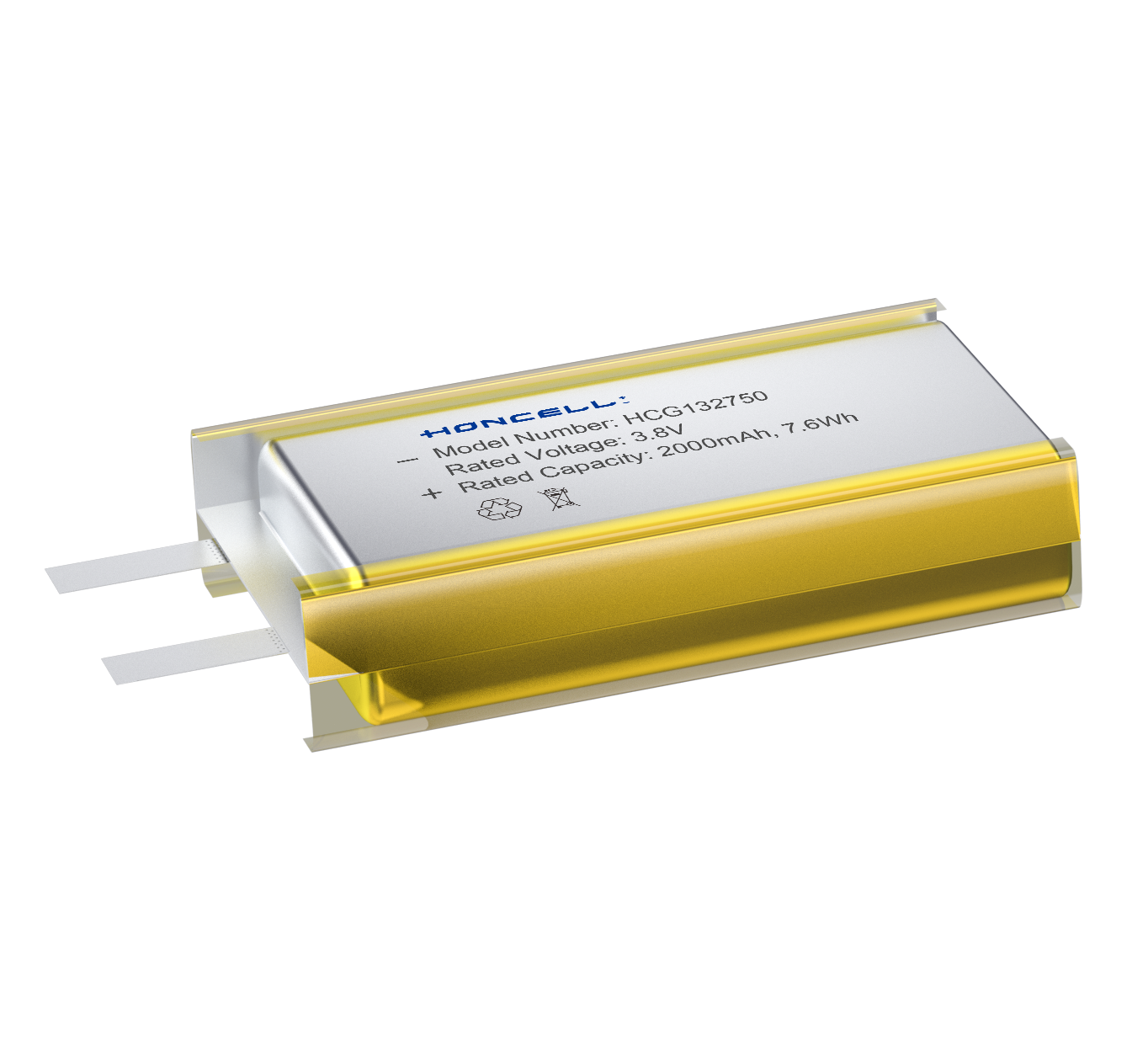

HCG High-Drain Li-Polymer Cell HCG132750
-
Parameters
-
Common Applications
-
Other Products
-
Handling Precautions & Guidelines
Parameters
-
Norminal Capacity: 2000mAh
-
Rated Voltage: 3.8V
-
Weight: Appr. 33.0g
-
Dimensions (mm): 13.0(T)*27.0(W)*50.0(L)
-
Impedance: Max: 50mΩ
-
Max. Discharge: 5C
-
Standard Charge/Discharge: 0.2C
-
Max Charge/Discharge: 2C/5C
-
Peak Discharge: 7.5C
-
Charge Temp: 10-45℃ (50-113℉)
-
Discharge Temp: -10-60℃ (14-140℉)
HCG High-Drain Li-Polymer Cell Applications
Other HCG High-Drain Li-Polymer Cell
Model No. | Voltage [V] | Capacity [mAh] | Thickness [mm] | Width [mm] | Length [mm] | Impedance [≤mΩ] | Weight [g] | Peak Discharge [C] |
---|---|---|---|---|---|---|---|---|
3.7 | 100 | 4.4 | 15.5 | 29.0 | 100 | 2.9 | 20 | |
3.7 | 300 | 6.8 | 14.8 | 37.0 | 65 | 6.5 | 15 | |
3.7 | 380 | 6.2 | 20.0 | 37.5 | 60 | 7.7 | 8 | |
3.7 | 450 | 4.8 | 30.5 | 50.5 | 25 | 13.0 | 30 | |
3.8 | 930 | 4.0 | 20.0 | 108.0 | 20 | 20.0 | 25 | |
3.7 | 1100 | 9.0 | 30.5 | 50.5 | 10 | 28.0 | 25 | |
3.8 | 2000 | 13.0 | 27.0 | 50.0 | 50 | 33.0 | 5 | |
3.7 | 3900 | 8.8 | 35.0 | 126.0 | 10 | 75.0 | 10 | |
3.7 | 6150 | 9.7 | 46.5 | 149.5 | 10 | 135.0 | 25 |
Handling Precautions & Guidelines
-
What is the Minimum Order Quantity (MOQ) for batteries?
As a professional manufacturer, Honcell requires a MOQ of 3,000 pieces. This is because our device startup process necessitates a certain raw material quantity, and producing fewer than 3,000 per batch may not ensure sufficient materials to properly fill the devices or operate the machinery effectively.
However, if the requested battery model is in stock, the MOQ can be more flexible. We encourage you to contact us to check availability and see if we have a suitable model for your needs.
-
Can the battery be customized?
Yes, we provide tailored solutions to meet our customers' precise needs. Our customization options include size, capacity, voltage, maximum discharge rate, and other parameters. Contact us to explore how we can create a battery solution that fits your requirements perfectly.
-
What is the charging time of the battery?
Generally, Honcell's batteries can be fully charged in 0.5 to 3 hours, depending on the charging current and the capacity of the battery.
